Spring Strut: Notes
The front steel suspension spring has a 95 mm compression and 100 mm rebound travel.
A new spring concept supports lateral chassis stability. Depending on the vehicle weight (equipment), modified spring types are used.

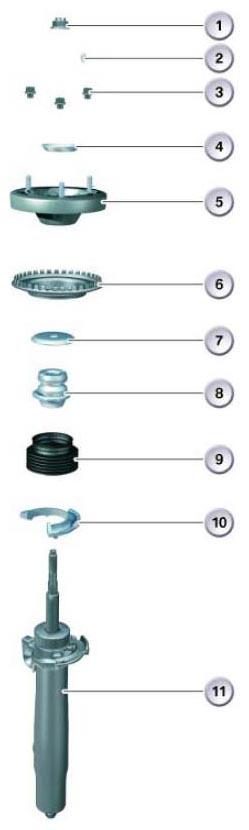

INDEX EXPLANATION REFERENCE CHART
| Index | Explanation |
|---|---|
| 1 | Retaining nut, shock absorber to support bearing |
| 2 | Dowel pin, support bearing to body |
| 3 | Mounting fixture, support bearing to body |
| 4 | Joint seat |
| 5 | Support bearing |
| 6 | Upper spring seat |
| 7 | Support disc |
| 8 | Additional damper/spring |
| 9 | Gaiter |
| 10 | Lower spring seat |
| 11 | Spring strut |
