Constant B-

Output function to energize a component.

Relay is energized by control module.

Internal activation of the transistor provides a ground for the relay coil.

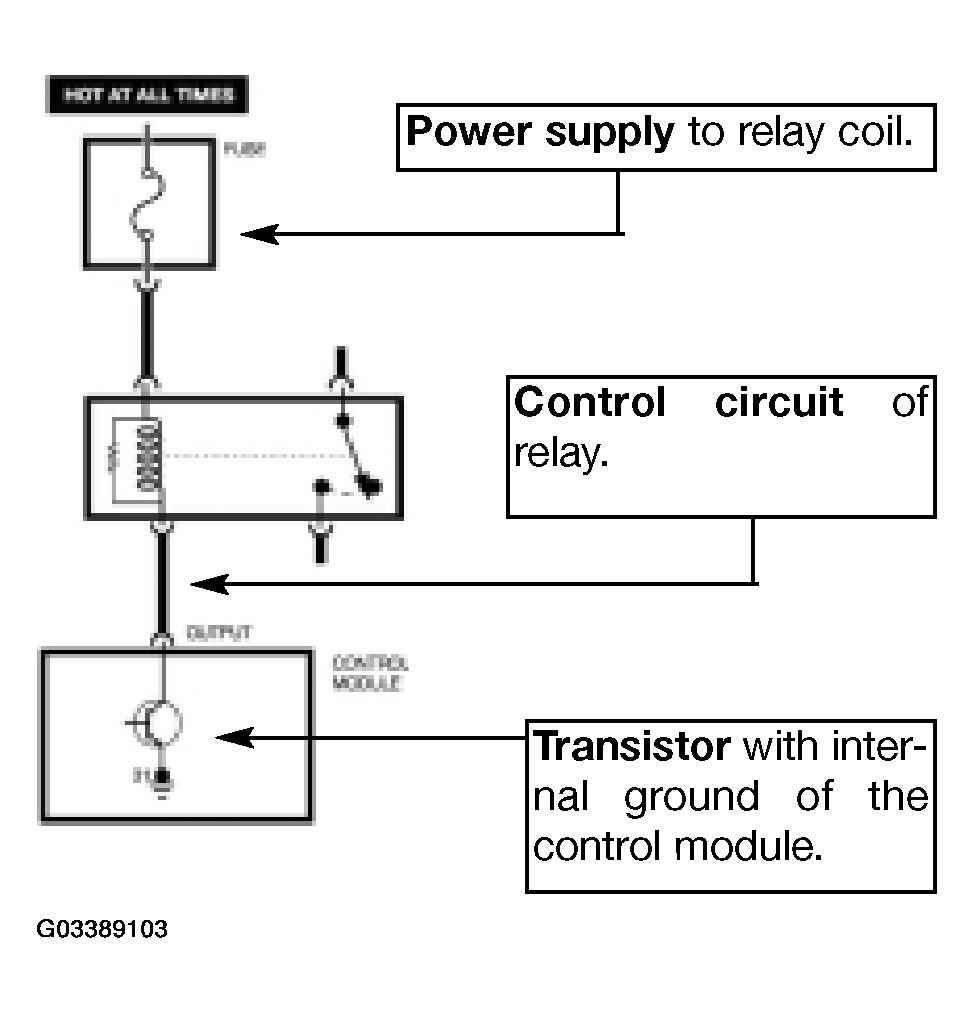

Fig 1: Identifying Output Function To Energize Component (Constant B-)

Courtesy of BMW OF NORTH AMERICA, INC.
