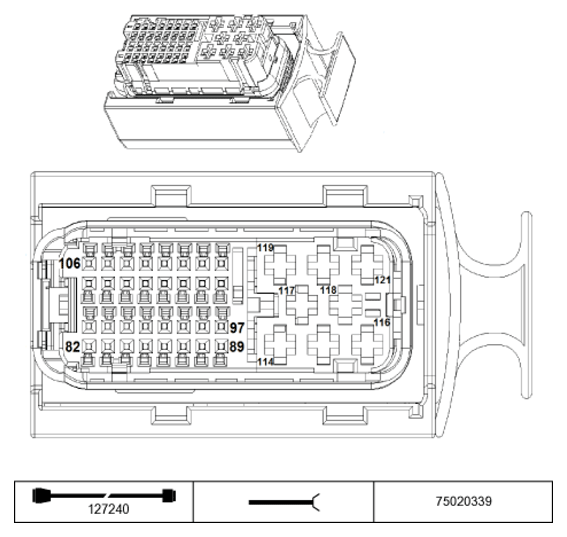

HDEV Control Module 2 X60242 Connector End View
Pin Assignments X60242
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 82 | Not occupied | ||
| 83 | Not occupied | ||
| 84 | Not occupied | ||
| 85 | Not occupied | ||
| 86 | Not occupied | ||
| 87 | Not occupied | ||
| 88 | Not occupied | ||
| 89 | Not occupied | ||
| 90 | M | Ground, fuel injector | Fuel injector, cylinder 9 |
| 91 | M | Ground, fuel injector | Fuel injector, cylinder 9 |
| 92 | M | Ground, fuel injector | Fuel injector, cylinder 10 |
| 93 | M | Ground, fuel injector | Fuel injector, cylinder 10 |
| 94 | A | Positive, fuel injector | Fuel injector, cylinder 9 |
| 95 | A | Positive, fuel injector | Fuel injector, cylinder 9 |
| 96 | A | Positive, fuel injector | Fuel injector, cylinder 10 |
| 97 | A | Positive, fuel injector | Fuel injector, cylinder 10 |
| 98 | Not occupied | ||
| 99 | Not occupied | ||
| 100 | Not occupied | ||
| 101 | Not occupied | ||
| 102 | Not occupied | ||
| 103 | Not occupied | ||
| 104 | Not occupied | ||
| 105 | Not occupied | ||
| 106 | Not occupied | ||
| 107 | Not occupied | ||
| 108 | Not occupied | ||
| 109 | Not occupied | ||
| 110 | Not occupied | ||
| 111 | Not occupied | ||
| 112 | Not occupied | ||
| 113 | Not occupied | ||
| 114 | M | Ground, fuel injector | Fuel injector, cylinder 7 |
| 115 | M | Ground, fuel injector | Fuel injector, cylinder 12 |
| 116 | A | Positive, fuel injector | Fuel injector, cylinder 11 |
| 117 | M | Ground, fuel injector | Fuel injector, cylinder 11 |
| 118 | A | Positive, fuel injector | Fuel injector, cylinder 7 |
| 119 | M | Ground, fuel injector | Fuel injector, cylinder 8 |
| 120 | A | Positive, fuel injector | Fuel injector, cylinder 12 |
| 121 | A | Positive, fuel injector | Fuel injector, cylinder 8 |
