Cylinder Bore

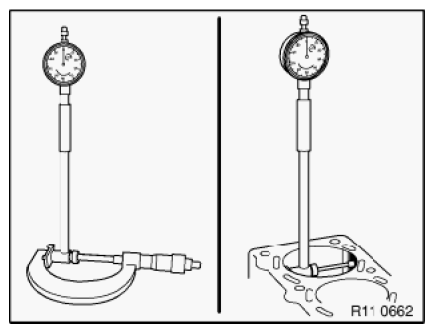

In order for the cylinder bore to be considered acceptable, it must not be excessively tapered or out-of-round. Once the cylinder has been checked for obvious damage and the surface finish is OK, the integrity of the bores must be verified. If cylinder wear is suspected, it must be checked using the proper cylinder bore gauge.
Each cylinder must be checked at three position in the bore - top, middle and bottom. Also there must be two opposing dimensions that should be checked. The difference between the top and bottom measurements will indicate the taper of the bore. The opposing dimensions will indicate the out-of-round specification.
If these measurements are out of specification, the cylinder bore must be re-finished or overbored. New pistons and rings must be fitted as well.
