System Components: Notes
The following components are involved in the wipe/wash system:
- Wiper motor with return contact
- Washer fluid pump
- Pump for headlight washer system
- Heated water jets.

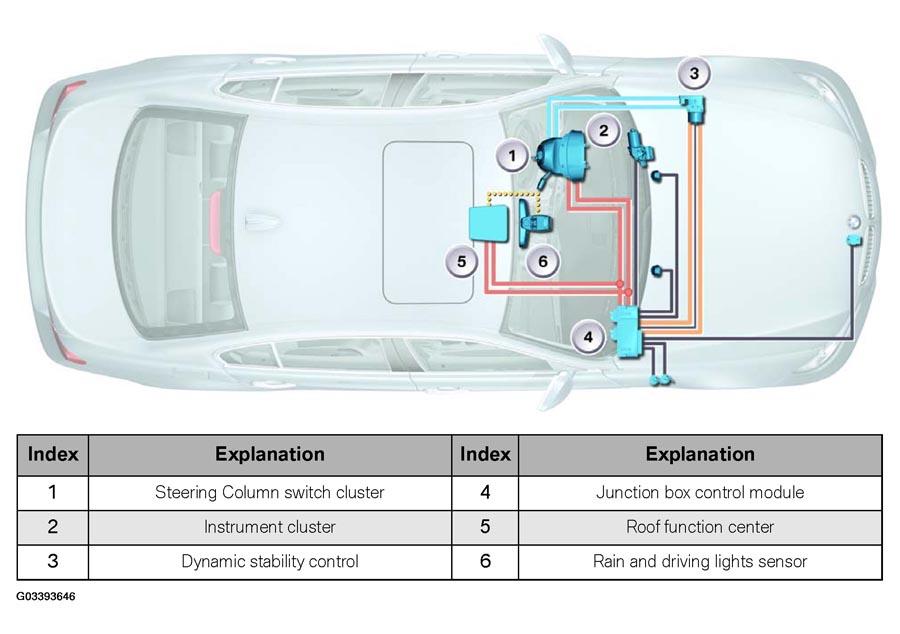

- Control units:
- Relays:
- Steering column switch cluster
- Junction box control module (JBE)
- Dynamic stability control (DSC)
- Roof function center (FZD)
- Rain and driving lights sensor (RLS)
- Relay for headlight washer system
- Instrument cluster (IKE/Kombi)
