Home >> BMW >> 2008 >> 335i 2D Convertible, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> Electrical - Overview >> E90 General Vehicle Electrical >> Central Locking >> Components Of Central Locking System >> Controls >> Center-Lock Button

Center-Lock Button

The center-lock button is installed in the instrument panel in the center of the outlet nozzle.

A new feature is that the center-lock button forms one component together with the hazard warning switch, the button for dynamic stability control and the stratification potentiometer.

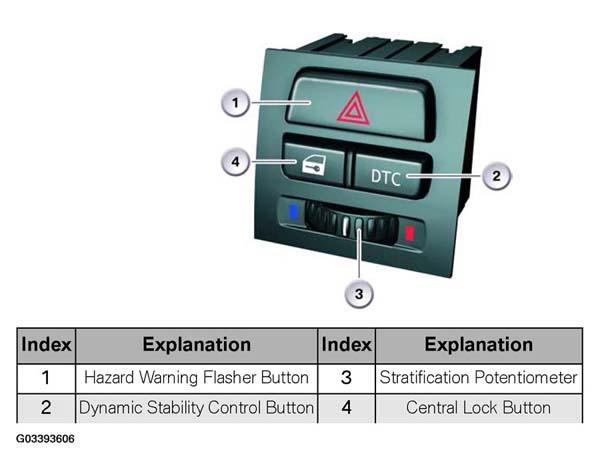

Fig 1: Identifying Center-Lock Button
G03393606Courtesy of BMW OF NORTH AMERICA, INC.
