Advanced Safety Electronics - Overview
>>
Advanced Safety Electronics (ASE)
>>
Advanced Safety Electronics IPO
Advanced Safety Electronics IPO

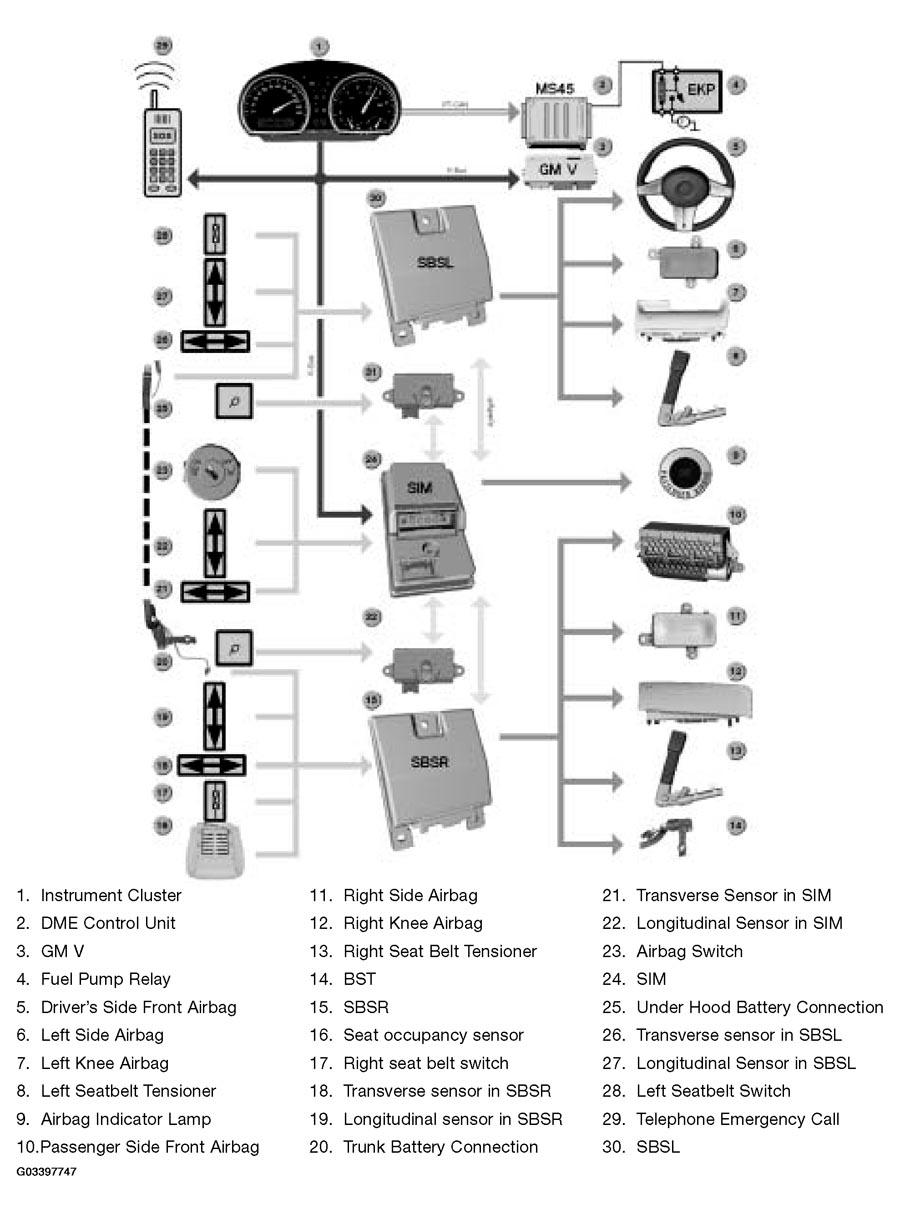

Fig 1: Identifying Advanced Safety Electronics IPO Components
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
