DME Test Cable (04 15 05)
Publication date: 2012-12-01Reference number: 04 15 05
DME TEST CABLE
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI B04 15 05, Date of Issue:
December 01, 2012
| BMW: | All with N52 |
| GROUP: | Tools and Equipment |
SERVICE INFORMATION
NOTE:
This Service Information bulletin supersedes SI B04 15 05 dated May 2005.
SUBJECT
DME Test Cable
SITUATION
Distribution of the following test cable is complete. Additional cables may be purchased through your RDC.
DME test cable
Order P/N 83 30 0 494 146
P/N 127 420
Price= Refer to ATLAS

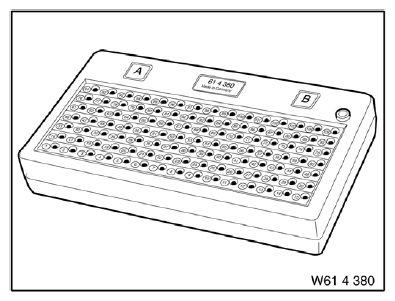

Used in conjunction with Break Out Box P/N 614 380 - 83 30 0 493 962 (SI B04 01 02) to diagnose the MSV70 DME.

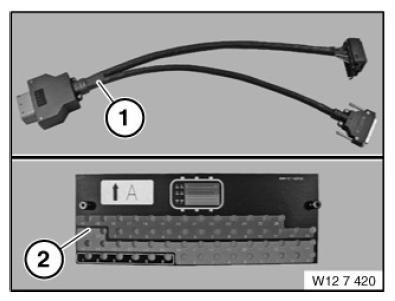

- DME Test cable 127 420
- Cover plate P/N 127 420/422 - 83 30 0 494 964 for Break Out Box (BOB) 614 380 - 83 30 0 493 962. The cover plate is included with the test cable.
- Place cover plate 127 422 on top of the BOB.
- Align the "A" on the cover plate (refer to W127420 above) with the "A" on the BOB.
- Gently push the securing pins on the cover plate into BOB holes #61 and 75.
- The BOB is now configured for the MSV70 DME testing.
