61 31 492 Replacing level switch for windshield washer system

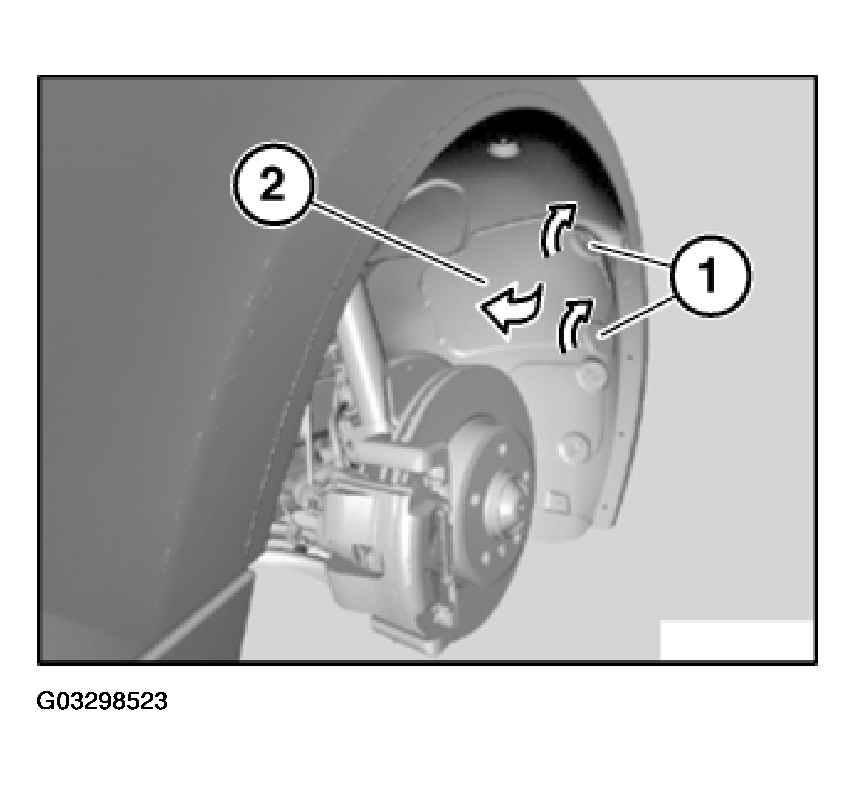

NOTE: Front wheel removed for purposes of clarity.

Turn fasteners (1) in direction of arrow through approx. 180°.

Fold up cover (2) in direction of arrow.

Fig 1: Turning Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

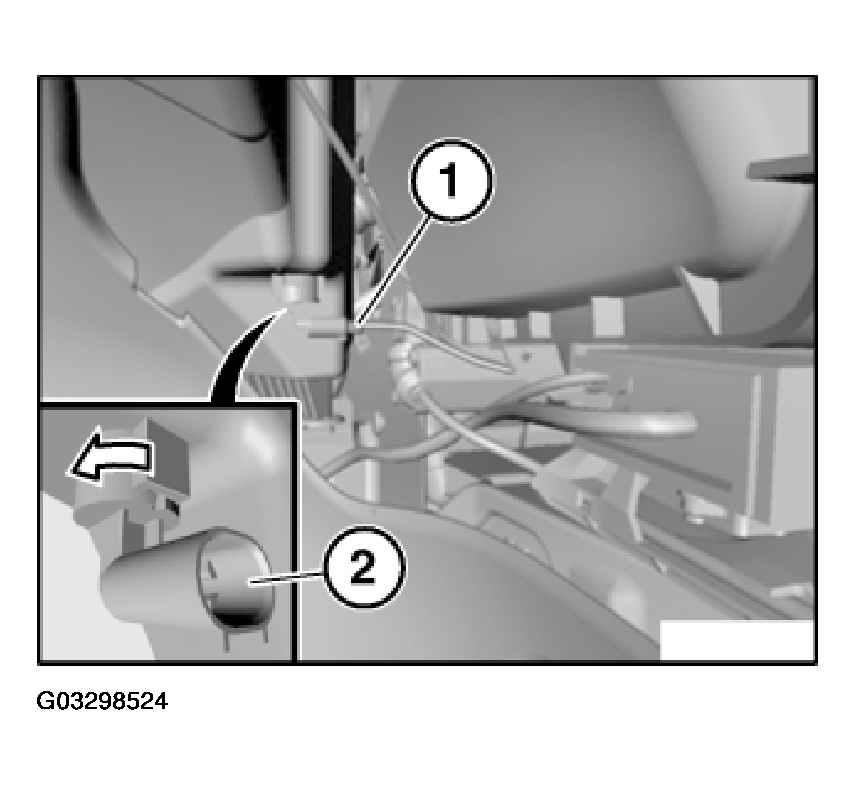

Unlock plug connection (1) and disconnect.

Turn level switch for windshield washing system (2) in direction of arrow through approx. 90° and pull out downwards.

Installation:

Make sure level switch for windshield washing system (2) is correctly seated.

Fig 2: Unlocking Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
