61 31 299 Removing and installing/replacing clutch switch module
Necessary preliminary tasks:
- Remove trim panel for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
NOTE:
For purposes of clarity, the clutch master cylinder is shown removed.

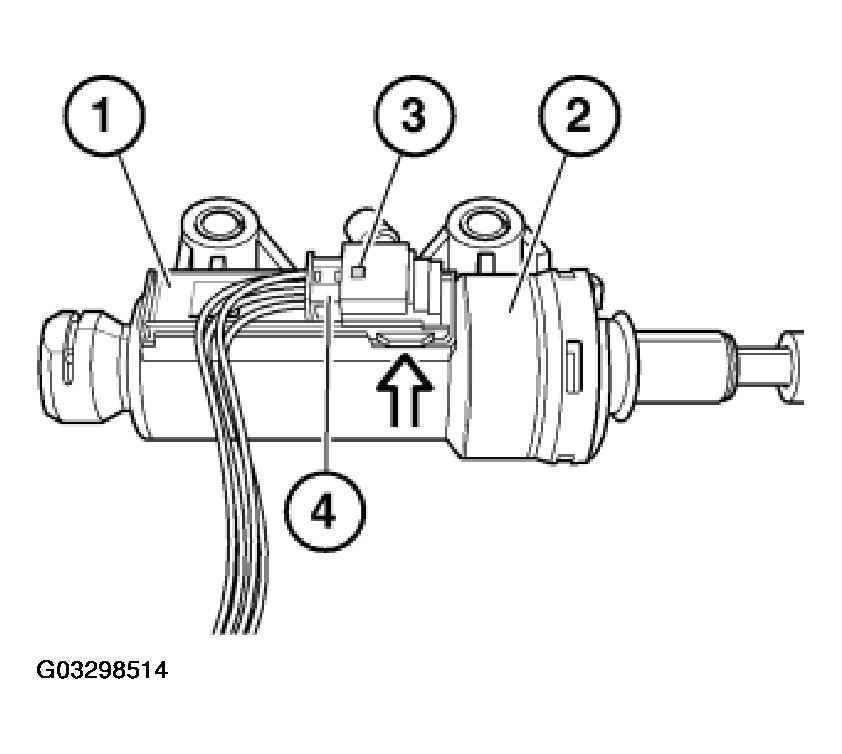

Lever out clutch switch module (1) from clutch master cylinder (2) with screwdriver.
Unlock plug (4) and disconnect from housing (3).
Installation:

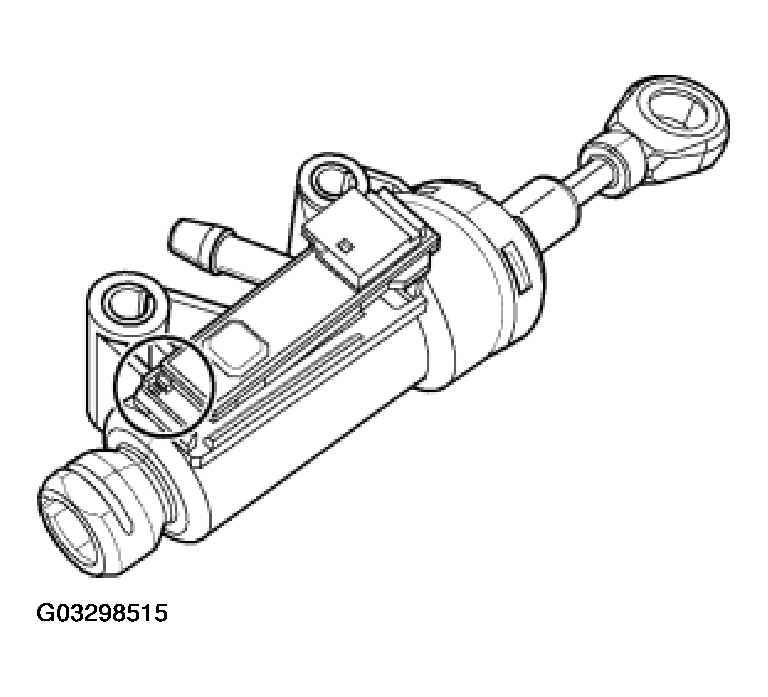

Clutch switch module is secured against incorrect installation.
Clutch switch module must snap audibly into place.
