61 35 147 Removing and installing/replacing convertible top module

Special tools required:

Necessary preliminary tasks:

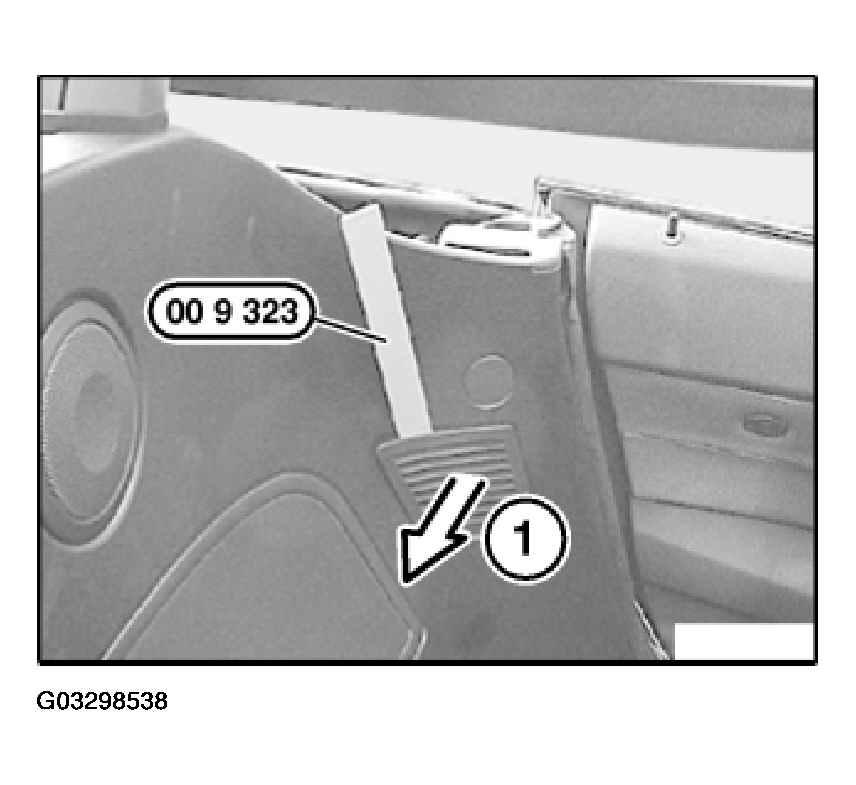

Lever out cover (1) with special tool 00 9 323 and remove.

Fig 1: Disconnecting And Cover Battery Negative Lead

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, the rear side trim is shown removed.

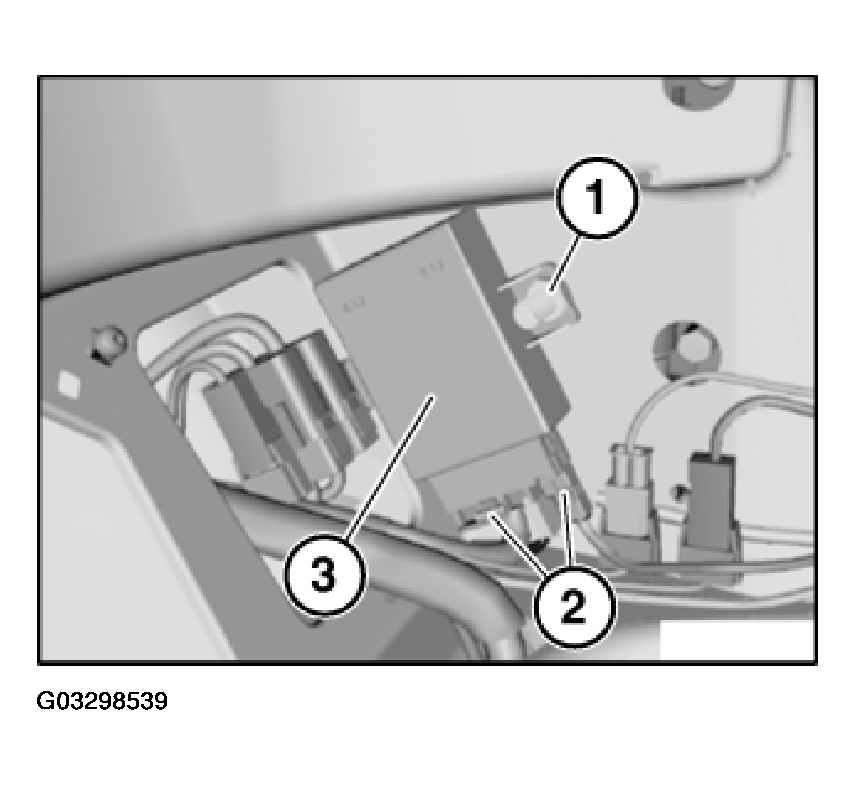

Unscrew nut (1).

Feed out convertible top module (3) through created opening.

Unlock plug connections (2) and disconnect.

Remove convertible top module (3).

Fig 2: Unlocking Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

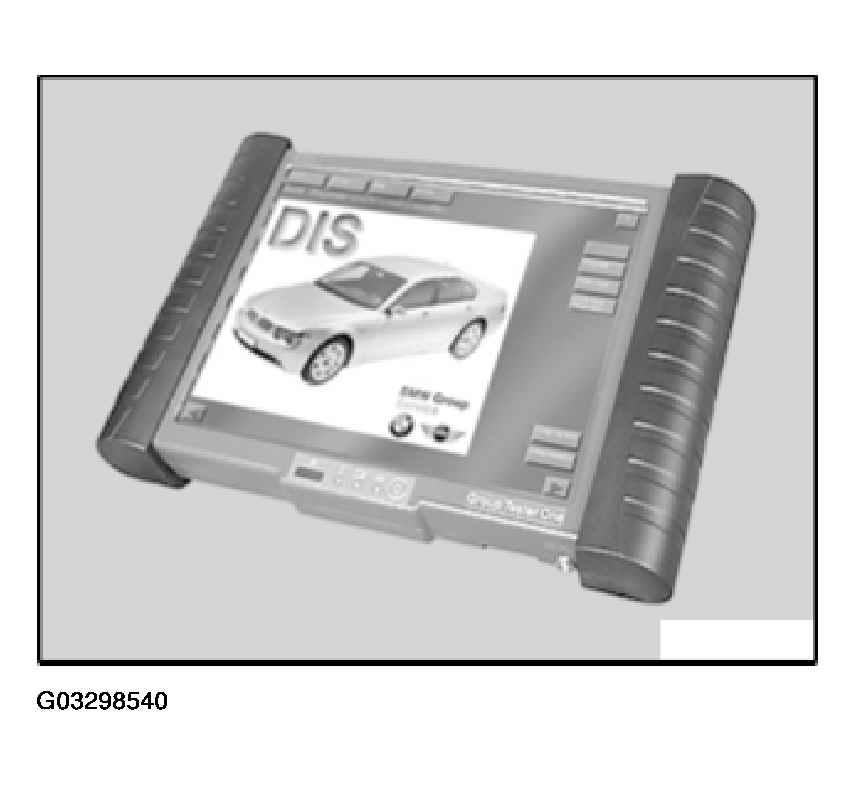

Fig 3: Identifying Carry Out Coding/Programming

Courtesy of BMW OF NORTH AMERICA, INC.
