Metric Micrometer Construction

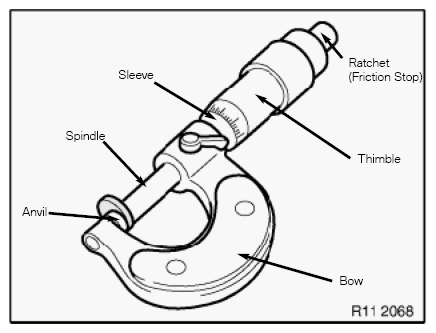

The micrometer is constructed of a few basic parts. The actual item to be measured is placed between the anvil and the spindle. The micrometer can be adjusted to the approximate size using the thimble. The thimble should only be used for the coarse adjustment. In order to make the actual measurement, the micrometer should only be turned using the ratchet (a.k.a. the friction stop). Do not attempt to make a measurement using the thimble. This will give an inaccurate measurement and ultimately damage the micrometer.
Micrometers are available in various sizes for outside as well as inside measurements. The more common variation is the outside micrometer. They are usually available in 25 millimeter increments such as 0-25 mm, 25-50 mm, 50-75 mm etc.
The metric micrometer can measure in increments of one hundredth of a millimeter (.01mm). One hundredth of a millimeter is equal to 0.0003937 inch which is less than one thousandth of an inch.
The measurement area of the micrometer consists of the sleeve scale and the thimble scale. The sleeve scale is used to read whole and half millimeters. The thimble scale (which rotates) reads in hundredths (.01) of a millimeter from zero to fifty. Two complete revolutions of the thimble equals one millimeter.
On the sleeve scale, each scale mark above the center line indicates whole millimeters. Below the center line, half of a millimeter (or.5mm) increments are indicated.
Using the example shown above, the micrometer is a 125-150mm micrometer. To read this micrometer, first take the basic reading from the sleeve scale. The thimble is past the 139 mm mark. Therefore the reading is a least 139 mm. Next, look at the thimble scale and note the reading on the centerline. The "10" on the thimble scale is lined up with the centerline. This indicates a reading of.10 mm. If you add the two readings; 139 +.10 = 139.10 mm.
