Checking/Correcting Transfer Case Oil Level

NOTE: Numbers in text refer to numbers in figures.

Undo oil filler plug (1). Check transfer case oil level. If necessary, pour in gear oil up to lower edge of opening for oil filler plug (1). See Fig 1 . Replace sealing ring.

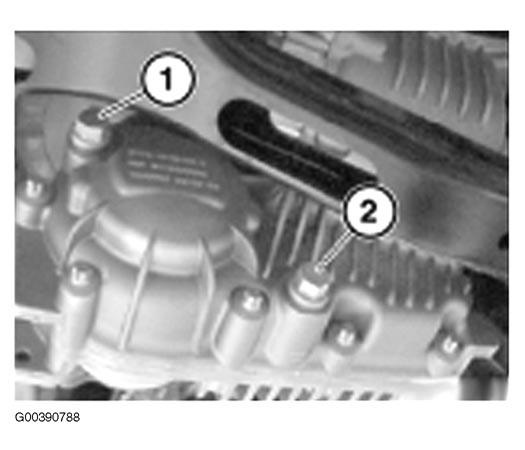

Fig 1: Identifying Oil Filler Plug & Drain Plug
G00390788Courtesy of BMW OF NORTH AMERICA, INC.
