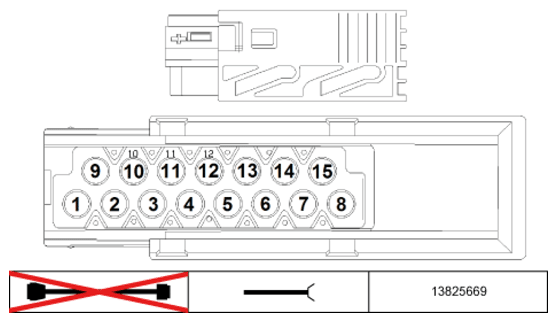

General Module Control Module X332 Connector End View
Pin Assignments At Plug Connector X332
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply for interior lights, washer pump, tailgate/rear lid release and load cutout | Fuse F26 |
| 2 | A | Signal, washer pump | Windshield washer pump |
| 3 | A | Signal, load cutout | Connector Load cut-out |
| 4 | Not occupied | ||
| 5 | Not occupied | ||
| 6 | A | Signal, front passenger's power window motor, open | Passenger's window motor |
| 7 | A | Signal, driver's power window motor, open | Driver's window motor |
| 8 | E | Supply, front window regulator | Fuse F46 |
| 9 | E | Supply, central locking system | Fuse F11 |
| 10 | Not occupied | ||
| 11 | Not occupied | ||
| 12 | Not occupied | ||
| 13 | A | Sensor ground | Passenger's window motor |
| 14 | A | Signal, driver's power window motor, closed | Driver's window motor |
| 15 | M | Load ground, central locking and window regulators | Ground point |
