31 .. .. Layout Of Spring Strut Shock Absorber

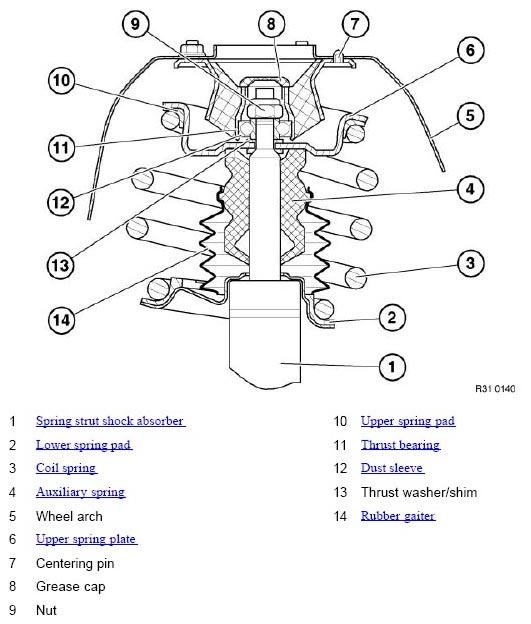

Fig 1: Layout Of Spring Strut Shock Absorber

G04778460

Courtesy of BMW OF NORTH AMERICA, INC.
