51 11 ... Installing/Replacing License Plate (Without Base)

Initial fitting:

Place drilling hole template (1) on bumper (2).

NOTE: Hole diameter = 2.5 mm (see template).

Drill holes according to license plate.

Remove template (1).

Secure license plate with screws provided.

Tightening torque. See 11 FRONT BUMPER .

Fit protective caps.

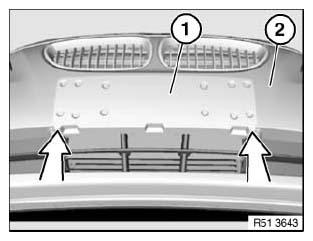

Fig 1: Identifying Drilling Hole Template On Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Repairing thread:

Drill out defective hole in bumper (2) to 9.5 mm diameter.

Insert blind rivet nut (1)*.

Secure license plate (3) with license plate screw (4)*.

Tightening torque. See 11 FRONT BUMPER .

NOTE: * Sourcing reference: BMW Parts Service

Fig 2: Identifying License Plate With License Plate Screw

Courtesy of BMW OF NORTH AMERICA, INC.
