12 1 170 Spark plug tool
Minimum Set: Mechanical Tools
SPARK PLUG TOOL SPECIFICATIONS
| In conjunction with: | 12 1 200 |
| Note: | For releasing spark plugs as well as for tightening to torque limit |
| Engine: | M40, M42, M43, M43TU, M44, M50, M52, M60, M62, M70, M73, N40, N42, N46, N73, S14, S38, S50B30, S50B32, W10, W11 |
| Storage location: | B13 |
| Order number: | 12 1 170 |

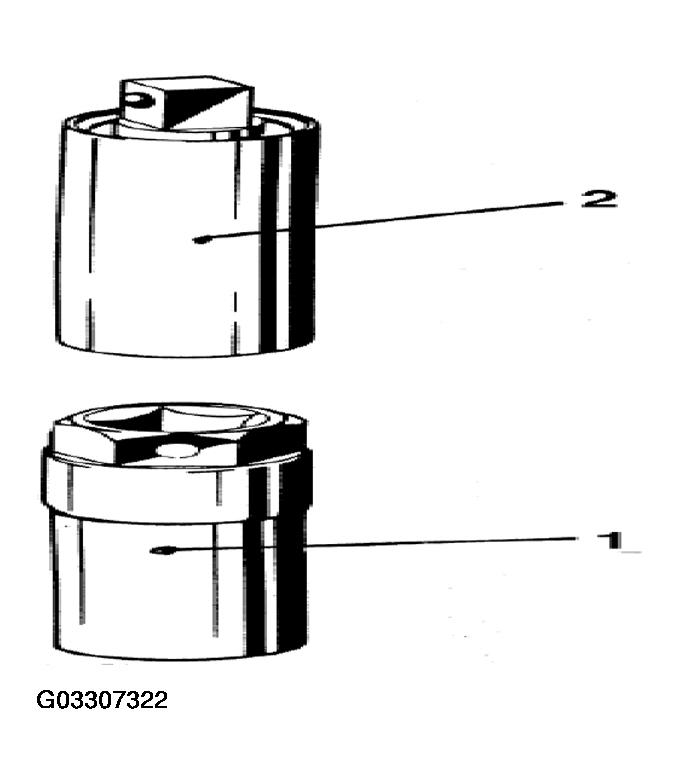

| Spark plug tool | |
| Consisting of: | |
| 1 = 12 1 171 | Spark plug key WAF 16 mm |
|
NOTE:
S50, M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, W10, W11, N40, N42, N73
|
|
| In conjunction with: 12 1 172 (S50), 12 1 200 (M40, M42, M43, M44, M50, M52, M60, M62, M70, M73, W10, W11, N73) | |
| 2 = 12 1 172 | Torque limiter 23 N.m +/- 3 N.m |
|
NOTE:
S14, S38, S50
|
|
| In conjunction with: 12 1 171 (S50), 12 1 160 (S14, S38) |
