Piston Measurements
When replacing pistons and/or piston rings, there are some basic measurements that need to be made. When fitting a piston to a cylinder bore, the piston diameter should be checked to ensure a proper fit.

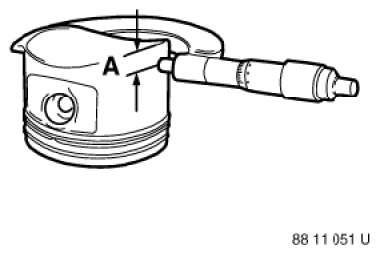

The piston diameter is measured using a micrometer. The measurement is taken at a specified point (A) which is 90 degrees from the piston pin axis. Each engine has a specific location to measure piston diameter. For example, the illustration below shows measuring Point A. The specification for this engine (N62) is 18 mm. So the piston diameter is measured 18 mm from the bottom of the piston skirt.
The piston diameter, when subtracted from the cylinder bore equals the cylinder wall to piston clearance. If the clearance measurement obtained is not correct, re-check your readings.
