Wiring Diagrams

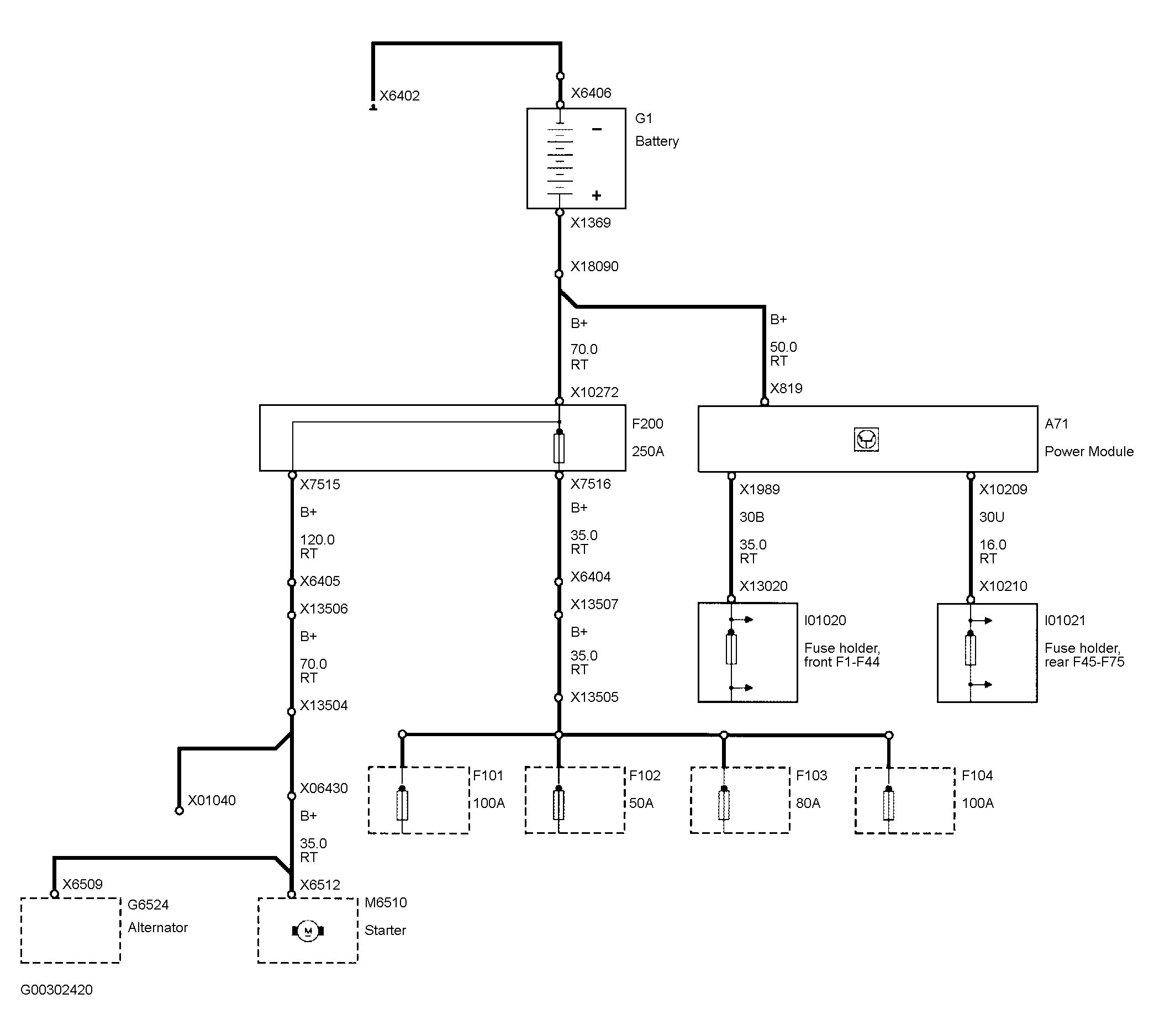

Fig 1: Charging System Wiring Diagram (760)

G00302420

Courtesy of BMW OF NORTH AMERICA, INC.
