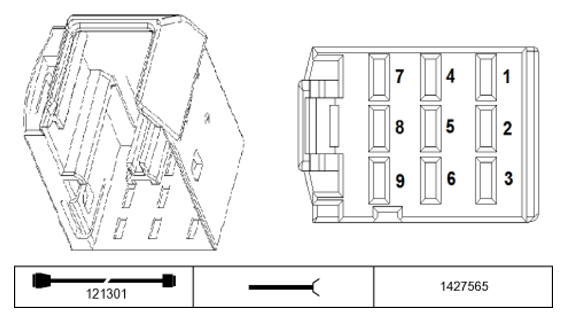

DME Control Module X60001 Connector End View
Pin Assignments X60001
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | Not occupied | ||
| 2 | Not occupied | ||
| 3 | A/E | TXD signal | Integrated supply module (IVM) |
| 4 | M | Ground | Ground point |
| 5 | Not occupied | ||
| 6 | M | Ground | Ground point |
| 7 | E | Supply, terminal 30 | Integrated supply module (IVM) |
| 8 | E | Supply, terminal 87 | Integrated supply module (IVM) |
| 9 | Not occupied |
