Blower And Blower Control Module: Notes

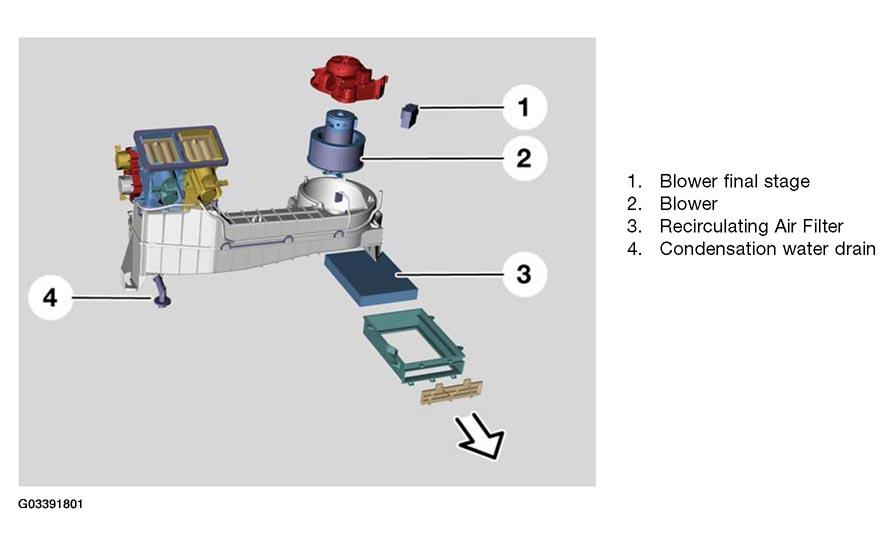

Fig 1: Identifying Blower And Blower Control Module Components
G03391801Courtesy of BMW OF NORTH AMERICA, INC.

Blower and Blower Control Module

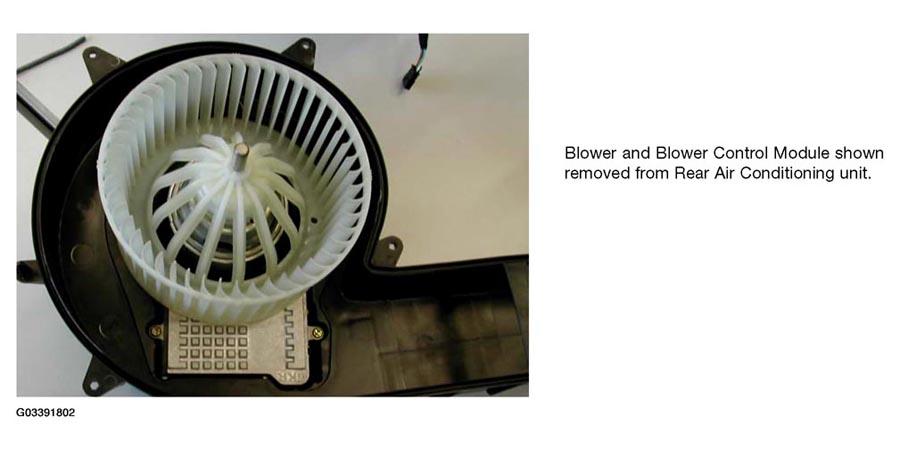

Blower and Blower Control Module shown removed from Rear Air Conditioning unit.

Fig 2: Identifying Blower And Blower Control Module
G03391802Courtesy of BMW OF NORTH AMERICA, INC.
