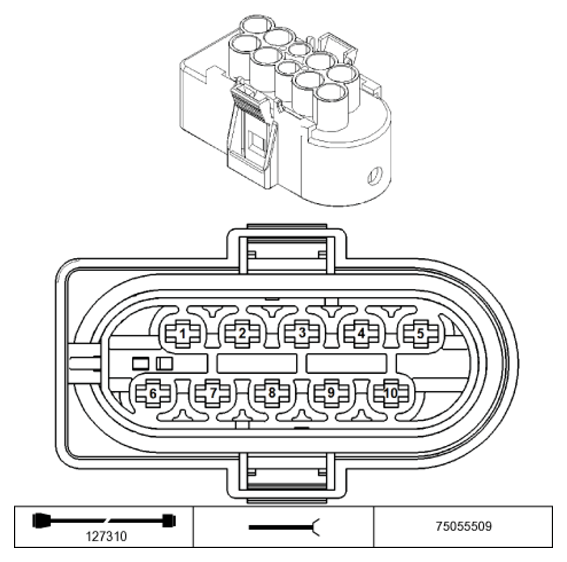

Variable Valve Timing Gear Control Module X60211 Connector End View
Pin Assignments X60211
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 87 | Fuse F011 |
| 2 | M | Ground | Ground point |
| 3 | E | Supply, terminal 87 | Integrated supply module (IVM) |
| 4 | M | Ground | Ground point |
| 5 | E | Supply, terminal 87 | Fuse F010 |
| 6 | A | Signal, actuator for variable valve timing gear | Valvetronic actuator motor |
| 7 | A | Signal, actuator for variable valve timing gear | Valvetronic actuator motor |
| 8 | E | Supply, terminal 87 | Integrated supply module (IVM) |
| 9 | A | Signal, actuator for variable valve timing gear | Valvetronic actuator motor 2 |
| 10 | A | Signal, actuator for variable valve timing gear | Valvetronic actuator motor 2 |
