32 00... General Chassis And Suspension Definitions

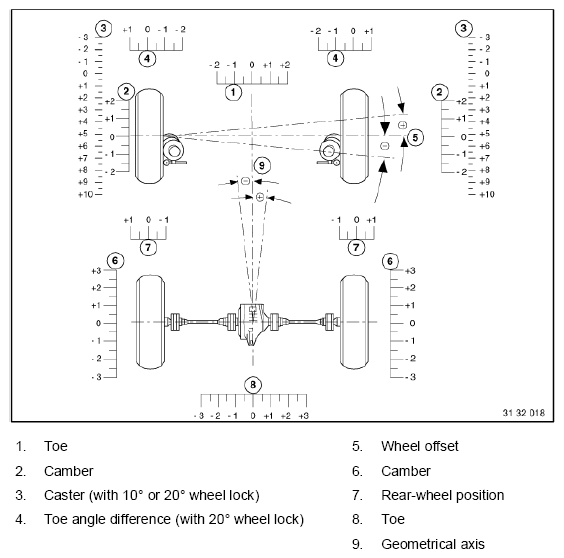

Fig 1: Checking Wheel Alignment Angle

G04755998

Courtesy of BMW OF NORTH AMERICA, INC.
