23 00... Replacing speed sensor (transmission main shaft) (GS6S53BZ) (N63/S63)
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2016 BMW M5, 2016 BMW 535i, 2015 BMW M5, 2015 BMW 535i, and 2014 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove underbody protection
- Remove heat shields on right
Recycling:
Catch and dispose of gear oil with suitable equipment.
Observe country-specific waste disposal regulations.

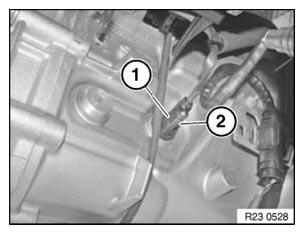

Unlock connector (1) and remove.
Release screw (2).
Remove speed sensor.
