61 31 208 Removing and installing/replacing switch for front lumbar support

Necessary preliminary tasks:

• Remove OUTER COVER ON FRONT SEAT .

Unlock catches (1) and remove switch for lumbar support (2) from cover (3).

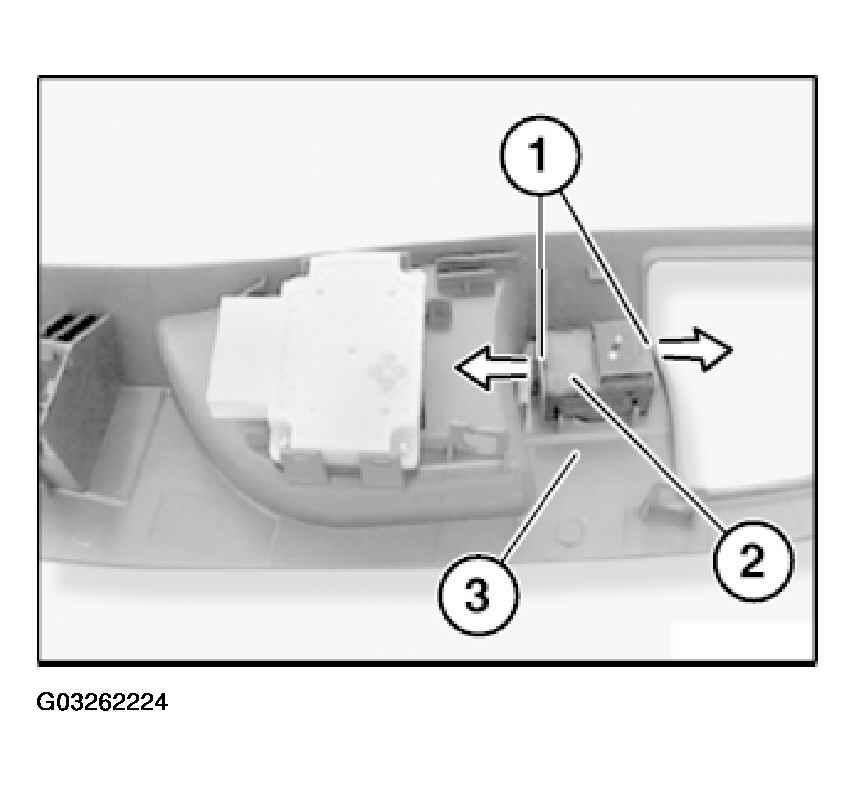

Fig 1: Removing Switch For Lumbar Support From Cover

Courtesy of BMW OF NORTH AMERICA, INC.
