61 31 115 Replacing rocker switch for side window operation (front)

Necessary preliminary tasks:

• Remove FRONT DOOR TRIM PANEL .

Unscrew nut (1).

Unlock catches (2) and remove rocker switch for side window operation (3) downwards out of front door trim panel (4).

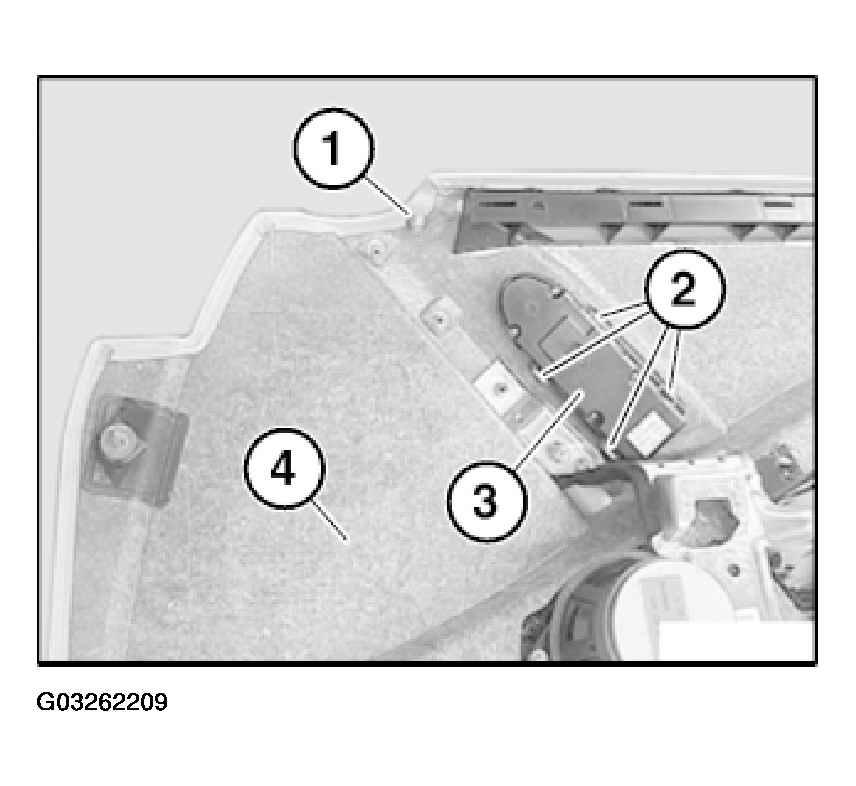

Fig 1: Removing Front Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hook (1) and plastic pin (2) must not be damaged.

Make sure rocker switch for side window operation (3) is installed in correct position.

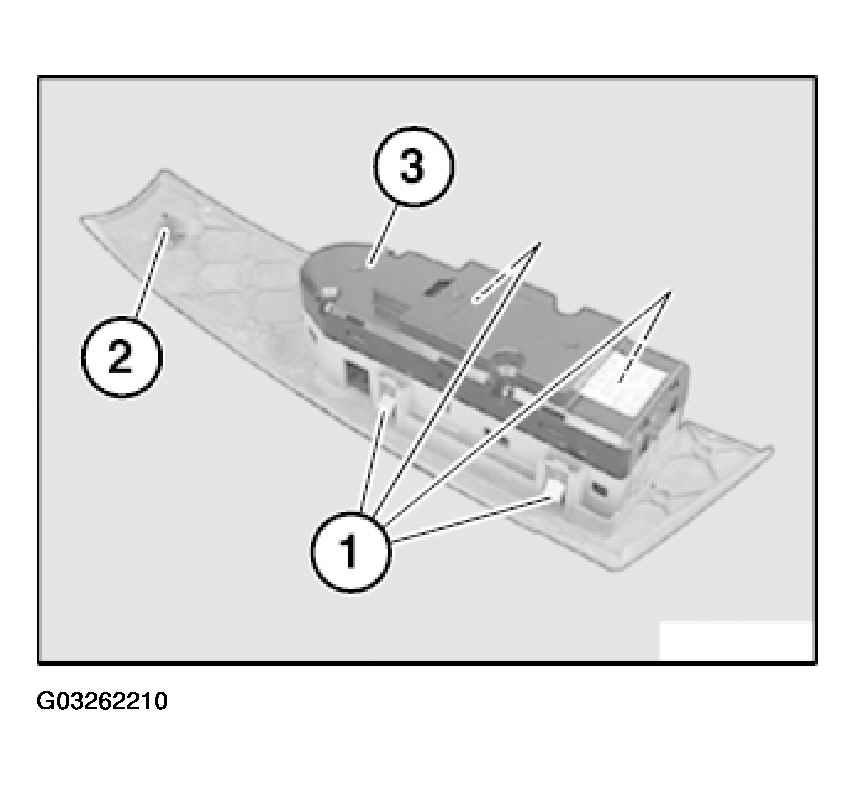

Fig 2: Identifying Rocker Switch For Side Window Operation

Courtesy of BMW OF NORTH AMERICA, INC.
