61 35 285 Removing and installing (replacing) light module

IMPORTANT: Read and comply with NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Unlock catch (1) and feed out/remove light module (2) in direction of arrow.

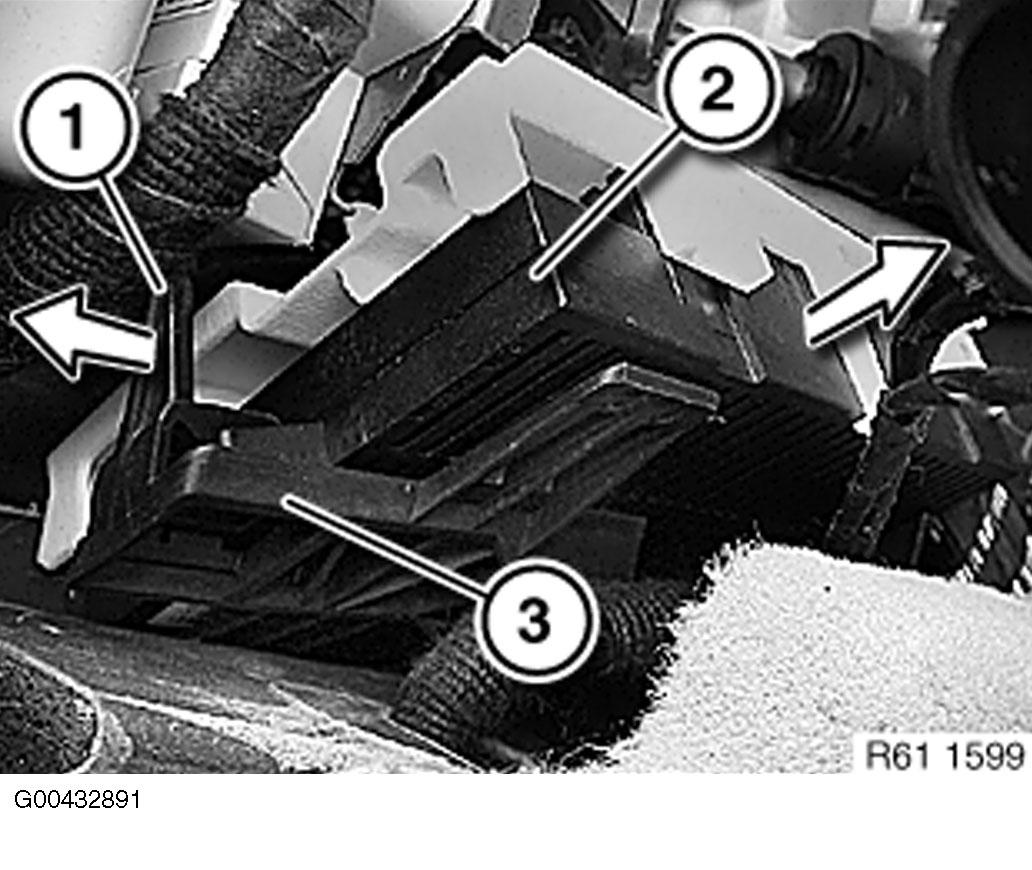

Fig 1: Removing Light Module
G00432891Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure light module (2) is correctly seated in mounting (3) and catch (1).

If necessary, unlock catch (1) and remove cover (2) from light module (3).

Installation: Make sure cover (2) is correctly seated on light module (3). Disconnect plug connection.

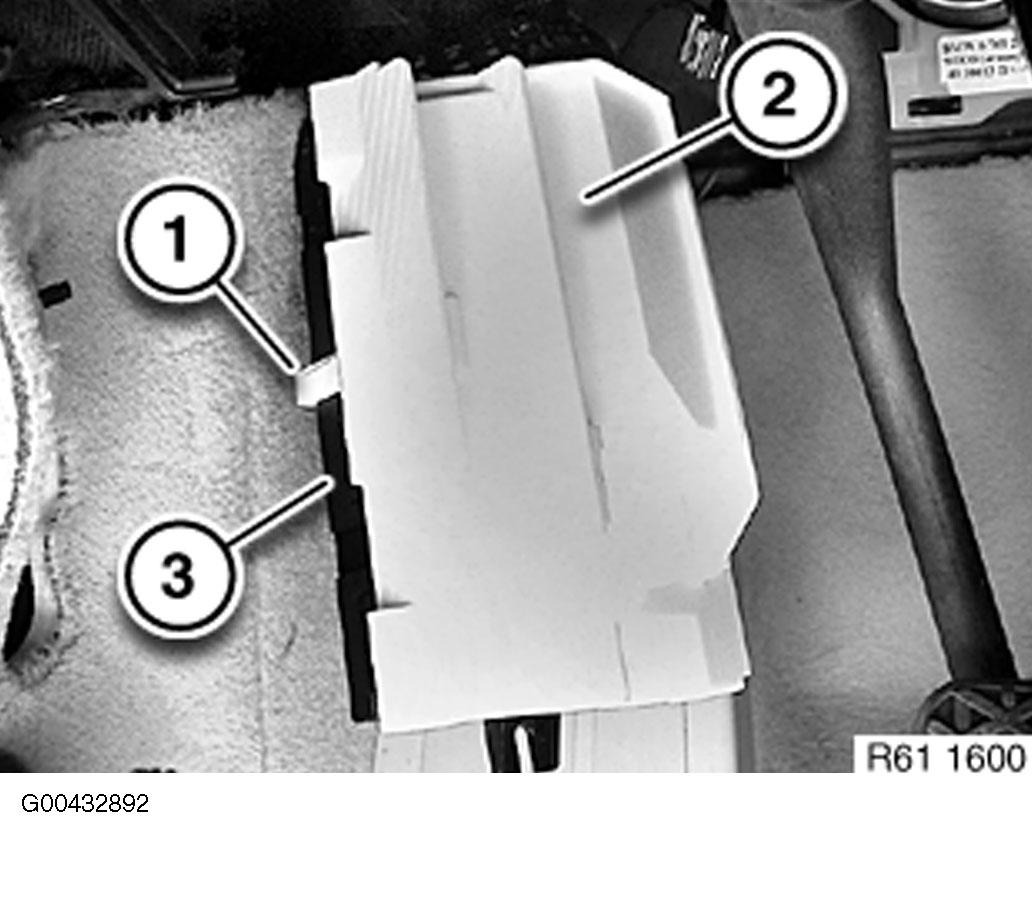

Fig 2: Ensuring Cover Is Correctly Seated On Module
G00432892Courtesy of BMW OF NORTH AMERICA, INC.

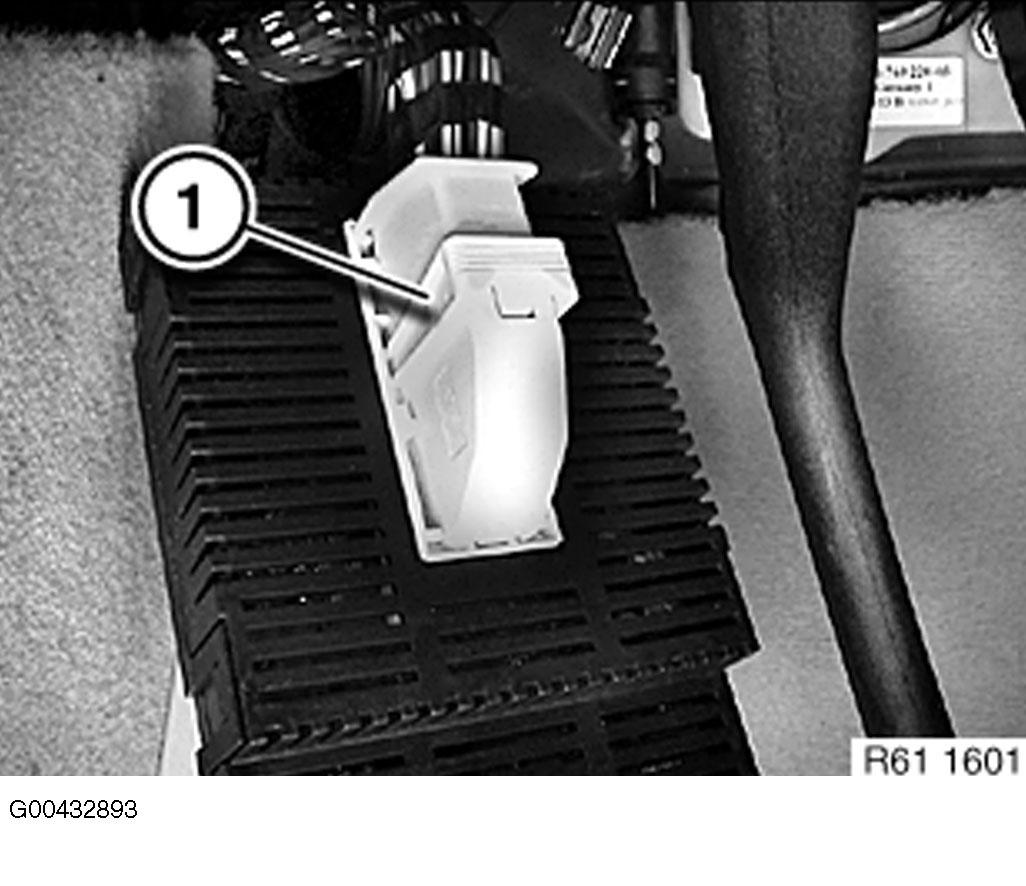

Fig 3: Disconnecting Plug Connection
G00432893Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/CODING .
