61 36 570 Removing and installing/replacing windshield wiper system relay

Necessary preliminary tasks:

• Remove LOWER SECTION OF MICROFILTER HOUSING ON RIGHT .

Release screws (1). Remove electronics box cover (2).

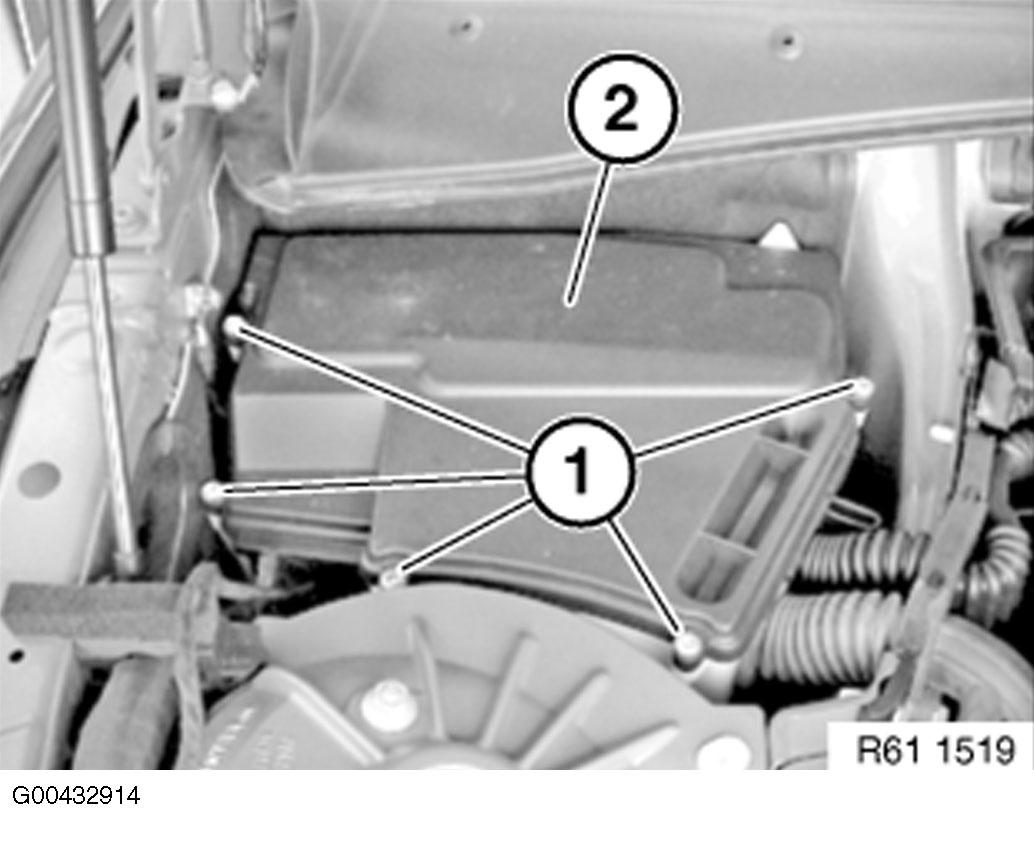

Fig 1: Removing Electronics Box Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach relay (1).

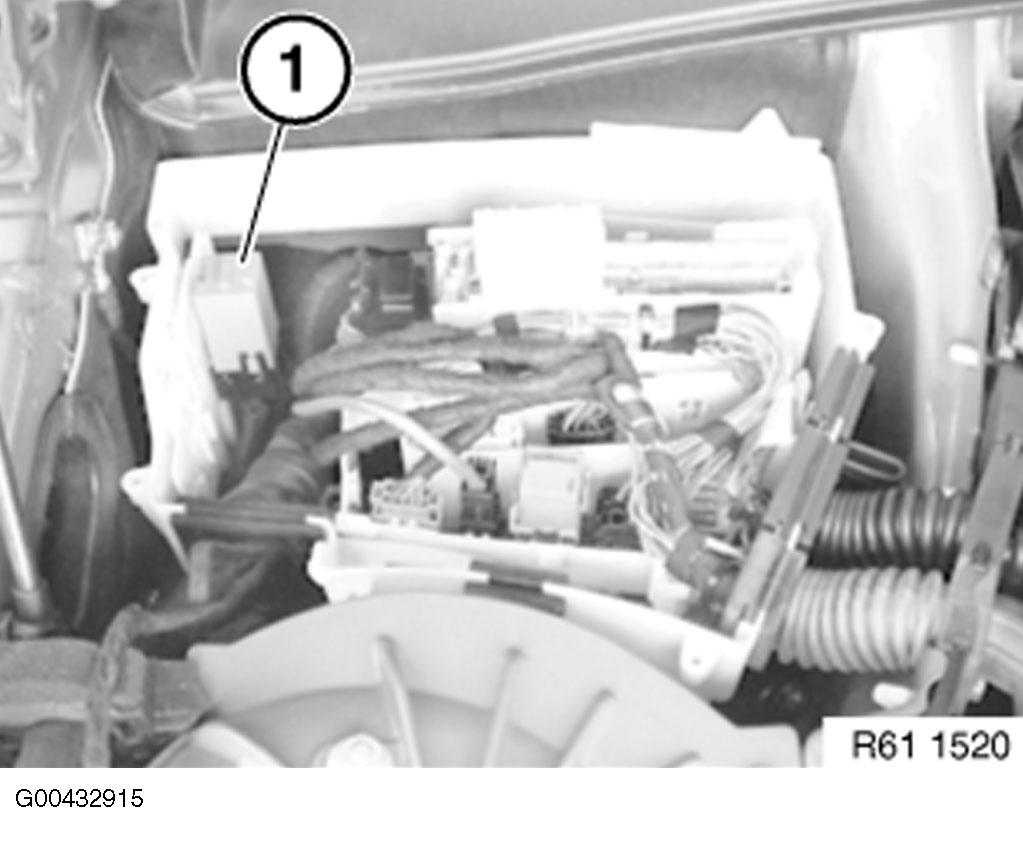

Fig 2: Detaching Relay

Courtesy of BMW OF NORTH AMERICA, INC.
