System Components

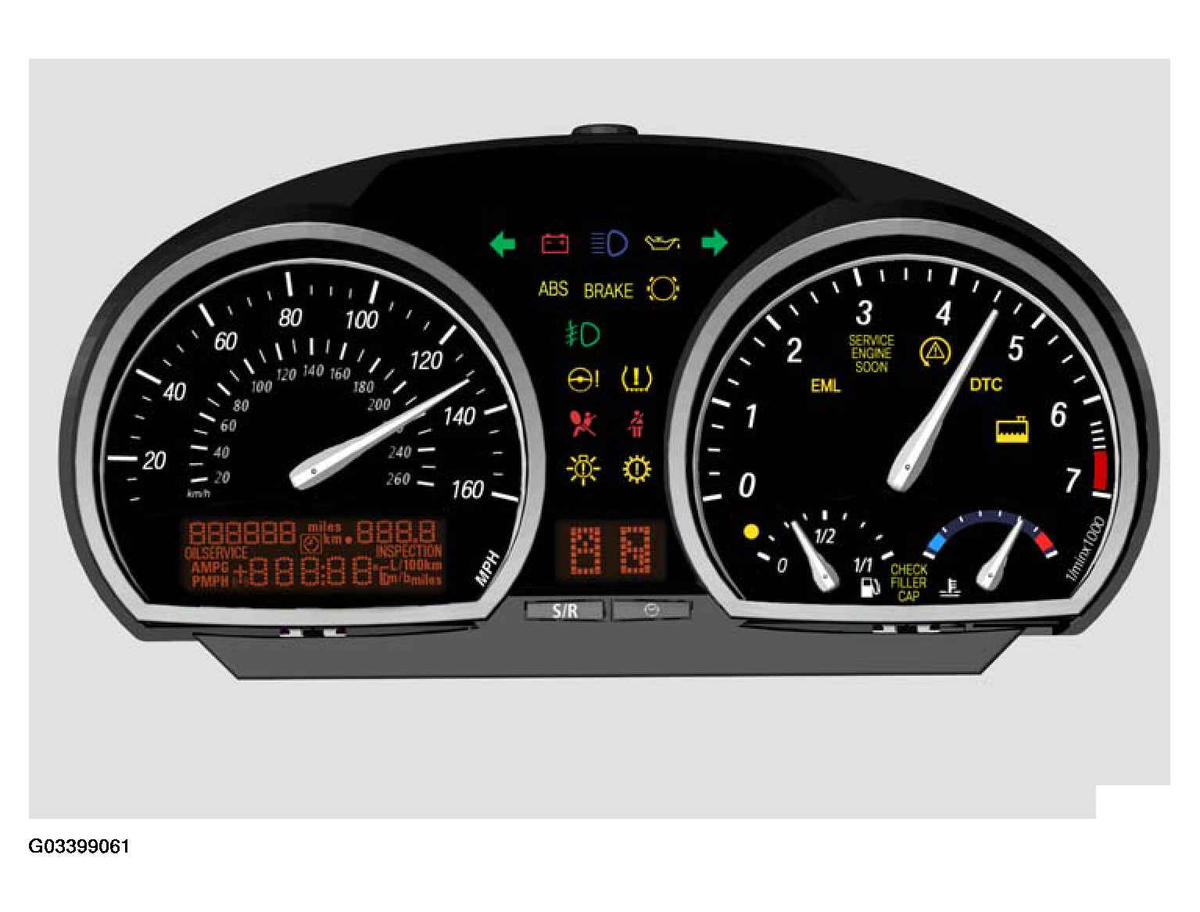

The instrument-cluster system comprises the following components:
- Needle instruments
- Indicator and warning lamps
- LC display
- Program and gear display for automatic gearbox and SMG Sequential Manual Gearbox
- Acoustic generator for outputting acoustic alarms
- Acoustic generator for outputting turn-signal flasher rate
- Two setting buttons, integrated in instrument cluster
- Connected components which serve to activate the displays/ indications in the instrument cluster.
