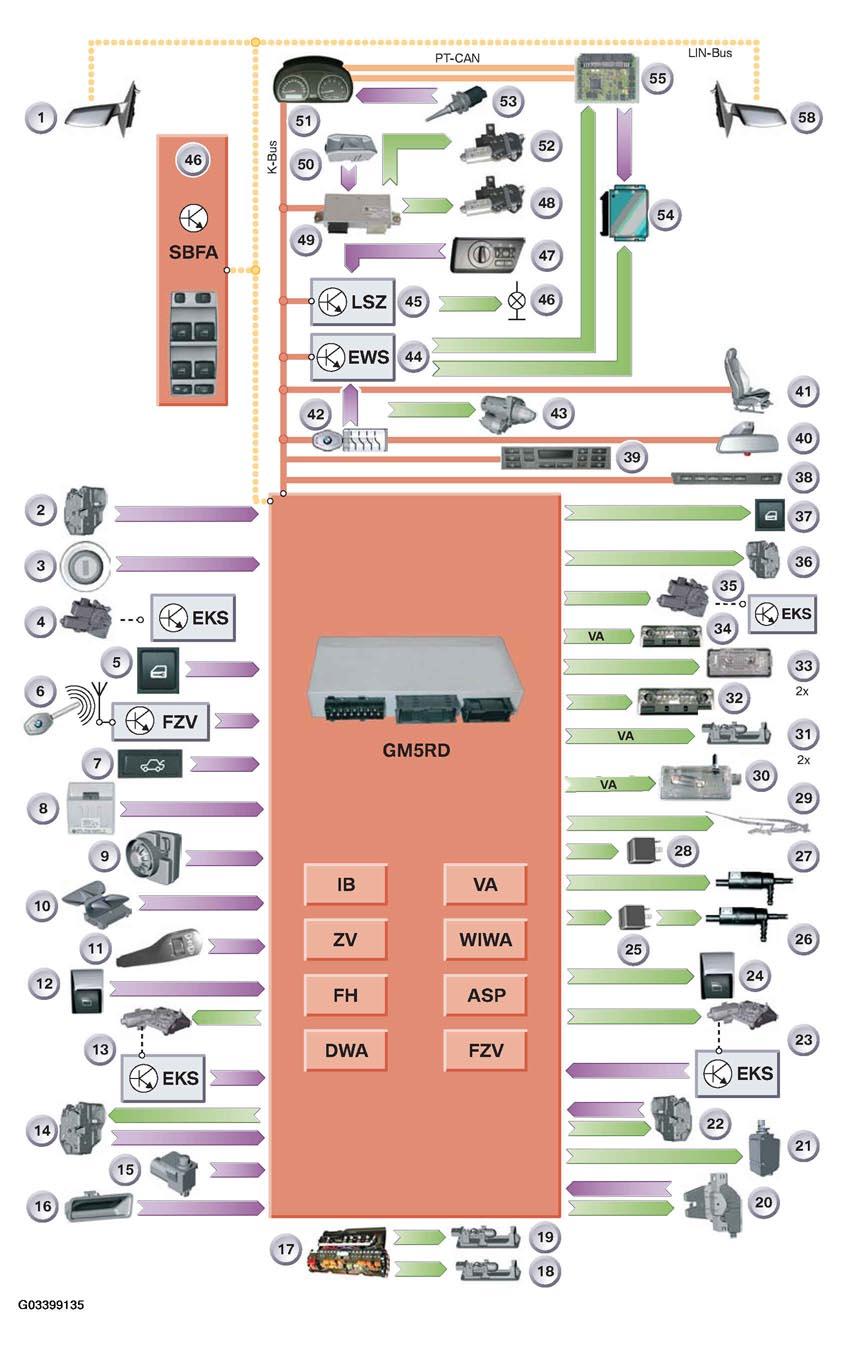

E83 Electrical System Overview
LEGEND FOR SYSTEM OVERVIEW
| Index | Explanation | Index | Explanation |
|---|---|---|---|
| 1 | Door mirror, left-hand side | 33 | Footwell lights |
| 2 | Central locking, driver's side | 34 | Ambient lights |
| 3 | Lock cylinder, driver's door | 35 | Power-window motor passenger side front with anti-trap |
| 4 | Power window, driver's side with anti-trap protection | 36 | Central locking, passenger side, front |
| 5 | Center-lock button | 37 | Power-window switch, passenger side, front |
| 6 | Central locking system remote control | 38 | Center console switch center |
| 7 | Interior tailgate opening button | 39 | Integrated automatic heating and air conditioning |
| 8 | Tilt sensor | 40 | Rear-view mirror with rain/light sensor |
| 9 | Siren | 41 | Seat adjustment |
| 10 | Ultrasonic interior movement detector | 42 | Ignition/starter switch |
| 11 | Wiper switch | 43 | Digital motor electronics |
| 12 | Power-window switch, driver's side, rear | 44 | Electronic immobilizer |
| 13 | Power-window motor, driver's side rear with anti-trap | 45 | Light switch cluster |
| 14 | Central locking, driver's side, rear | 46 | Exterior lighting WIWA Wipe/wash system |
| 15 | Bonnet contact switch | 47 | Lights operating unit FH Power windows |
| 16 | Exterior tailgate opening button | 48 | Panorama glass sunroof drive motor |
| 17 | Power distributor, front | 49 | Panorama glass sunroof control unit |
| 18 | Vanity mirror light | 50 | Panorama glass sunroof switch IB Interior Lights |
| 19 | Vanity-mirror light | 51 | Instrument cluster VA Consumer shutdown |
| 20 | Central locking, boot lid | 52 | Panorama glass sunroof drive motor |
| 21 | Fuel filler flap central locking | 53 | Outside temperature sensor |
| 22 | Central locking, passenger side, rear | 54 | EGS |
| 23 | Power-window motor, passenger side rear with anti-trap | 55 | Engine management |
| 24 | Power-window switch, passenger side, rear | 58 | Door mirror, right |
| 25 | Headlight cleaning system relay | K-Bus | Body bus |
| 26 | Headlight cleaning system pump | LIN | Local Interconnected Network bus |
| 27 | Washer fluid pump | PT-CAN | Powertrain CAN |
| 28 | Relay, wipe/wash system | ZV | Central locking |
| 29 | Wipe/wash system | DWA | Anti-theft alarm system |
| 30 | Glovebox light | FZV | Central locking system remote control |
| 31 | Luggage-compartment light | CKM | Car and Key Memory |
| 32 | Interior/reading lights, front |
