Instrument Cluster

The instrument cluster in the E83 is similar to that of the E85. The following changes have been made to the E83 cluster:

• The end scale value (maximum speed reading) has been reduced to 155 mph (250 km/h)
• There are no indicator lamps for the EPS or DTC
• A wiper fluid indicator lamp has been added.

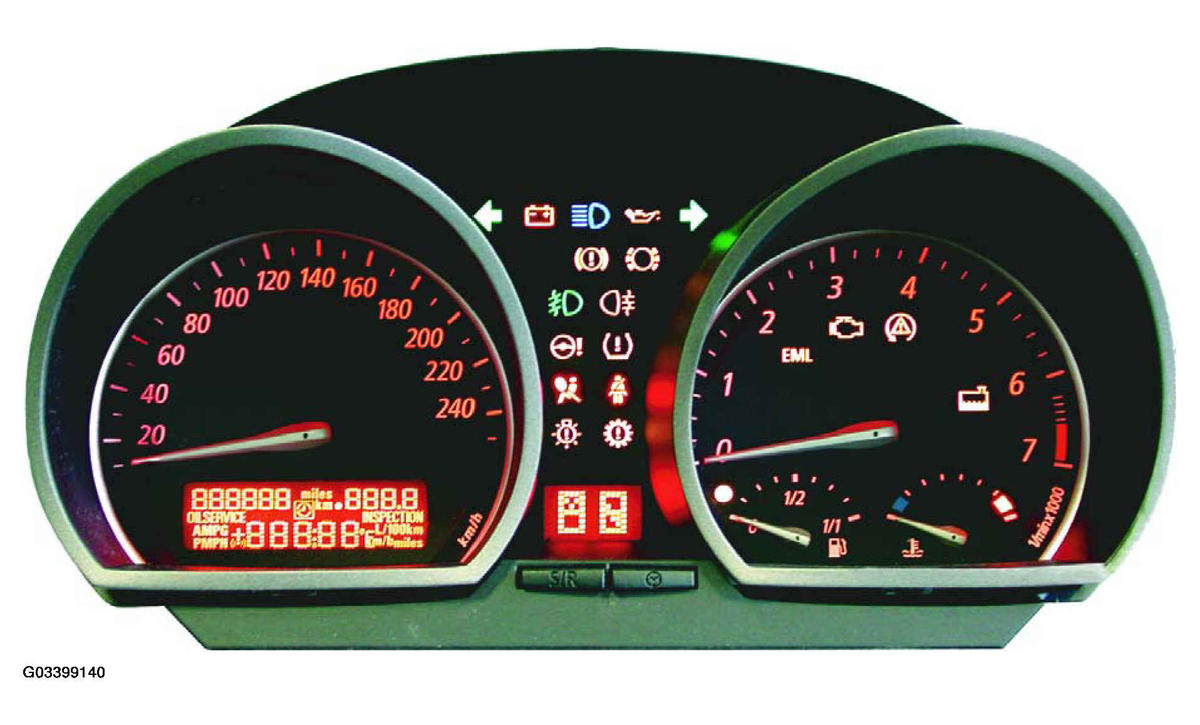

  Fig 1: Identifying Instrument Cluster

  Courtesy of BMW OF NORTH AMERICA, INC.

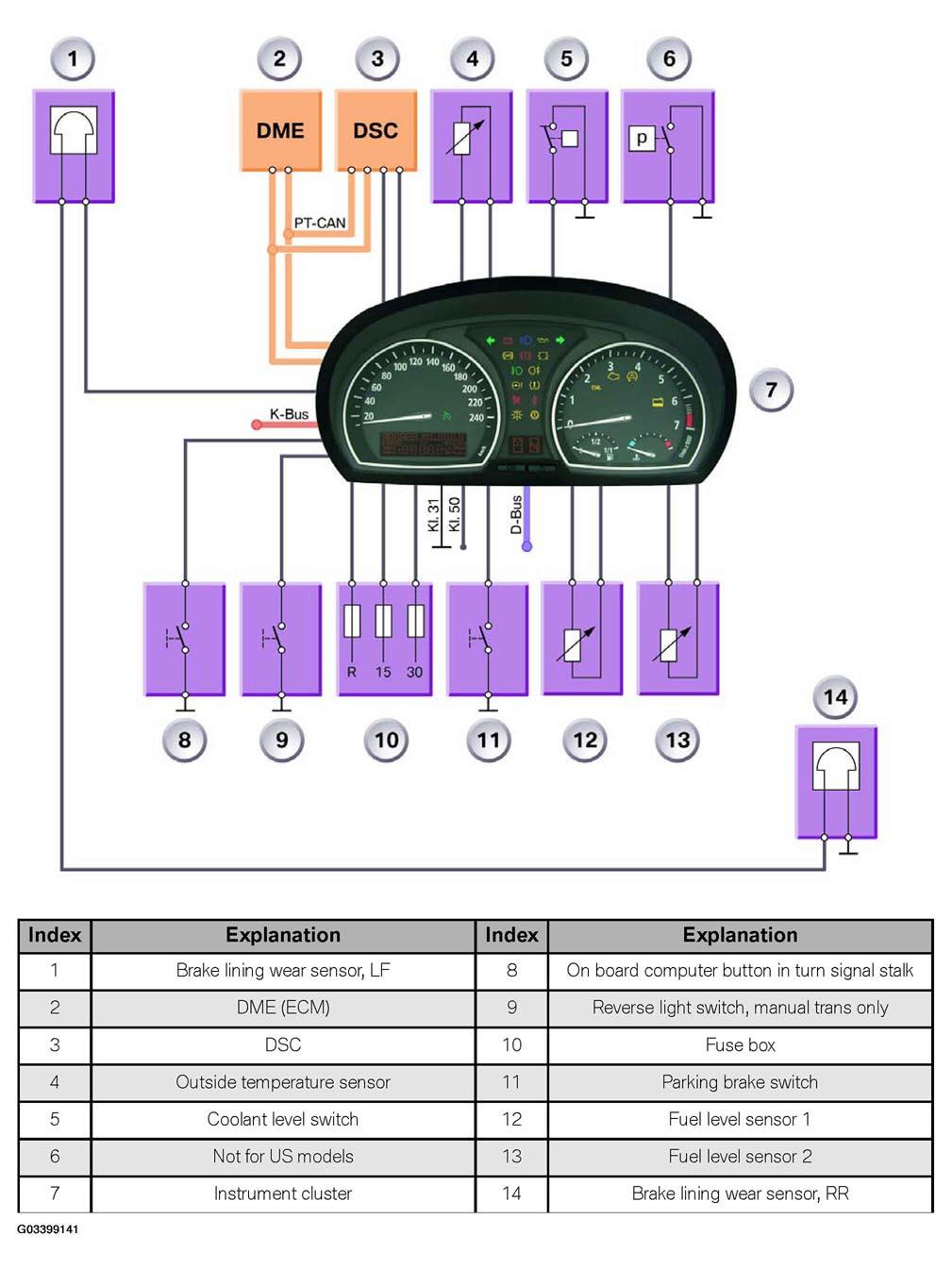

Fig 2: Instrument Cluster Schematic

Courtesy of BMW OF NORTH AMERICA, INC.
