Indicator And Warning Lamps: Notes

The indicator and warning lamps are activated by the processor in the instrument cluster. Important indicator and warning lamps are activated in the Predrive Check with terminal 15 "ON". The indicator lamps and warning symbols are illuminated by permanently wired-in LEDs (replacement of LEDs not possible).

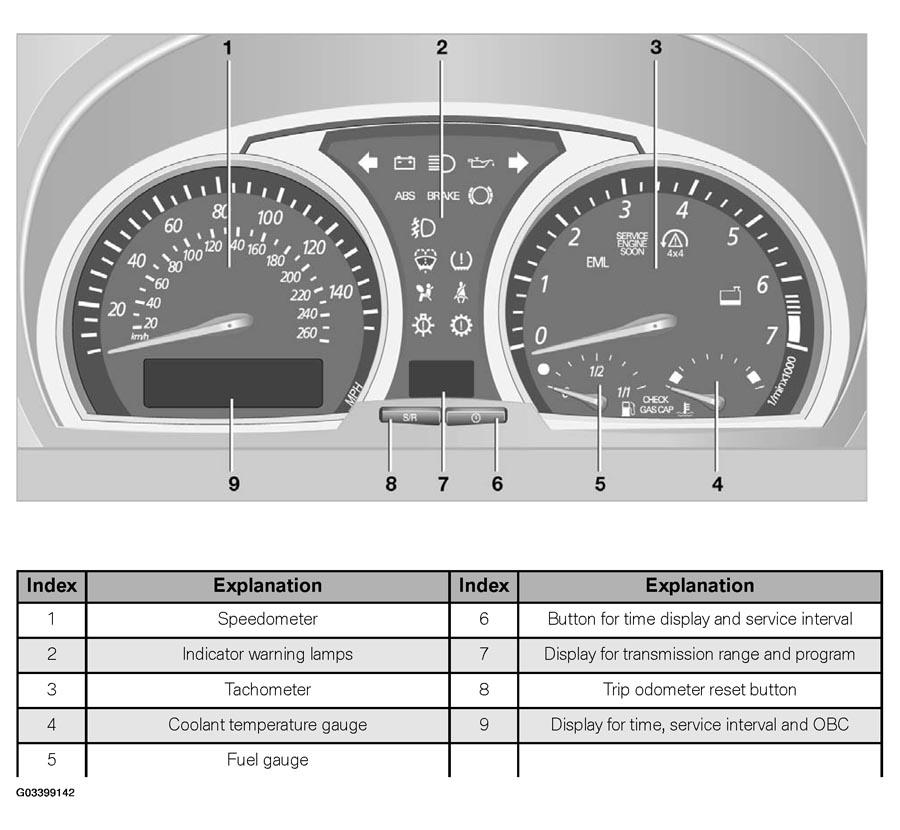

Fig 1: Identifying Indicator And Warning Lamps
G03399142Courtesy of BMW OF NORTH AMERICA, INC.
