Assembly of fast-release coupling

Press in lock (1) before installing fast-release coupling.

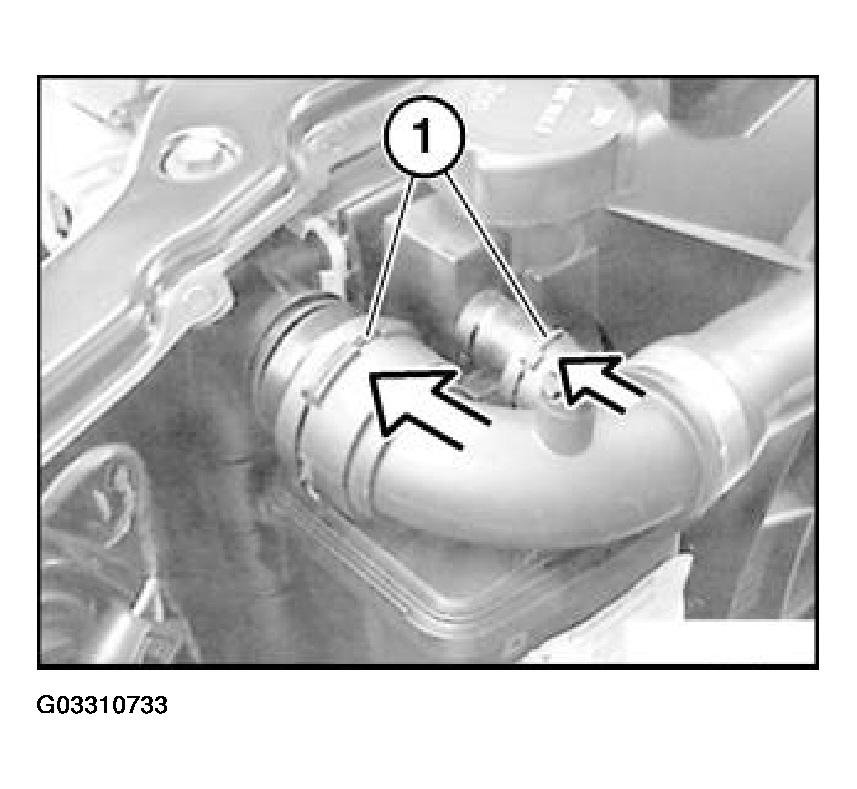

Fig 1: Installing Fast-Release Coupling
G03310733Courtesy of BMW OF NORTH AMERICA, INC.

Push on hose.

Fast-release coupling must audibly snap into place.
