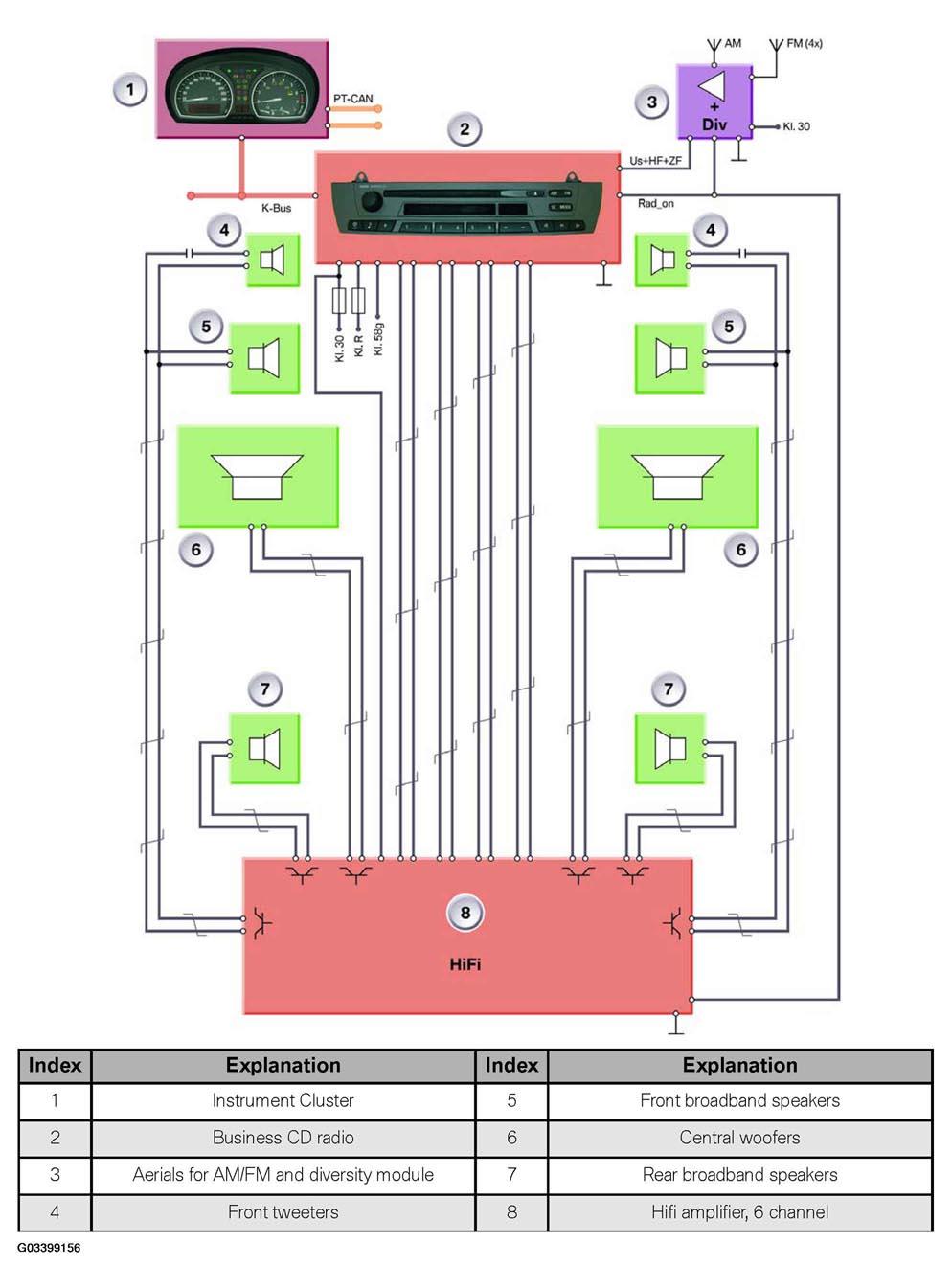

Home >> BMW >> 2006 >> X3 Standard >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> Electronic Systems - Overview >> Electronic Systems >> Audio Systems >> HiFi Amplifier >> HiFi System Schematic
