61 31 115 Replacing Rocker Switch For Side Window Operation (Front)

Special tools required:

Carefully lever out rocker switch for side window operation (1) with special tool 00 9 341 at specified points.

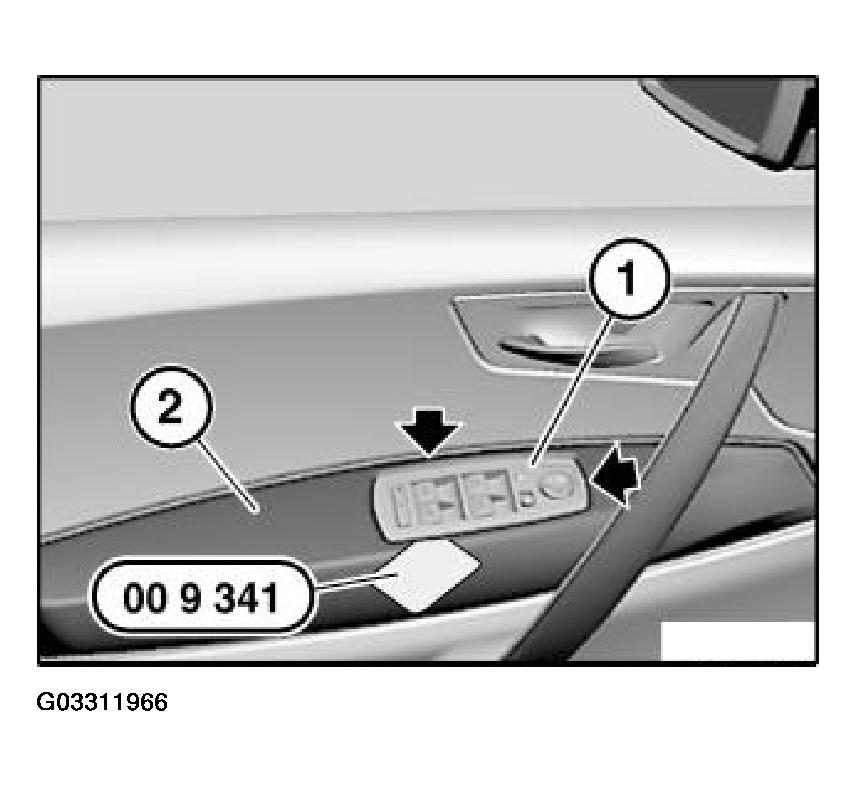

Fig 1: Removing Rocker Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Feed rocker switch for side window operation (1) out of front door trim panel (2).

Disconnect associated plug connection and remove rocker switch for side window operation (1).

Installation:

Retaining hooks (1) of rocker switch for side window operation (2) must not be damaged.

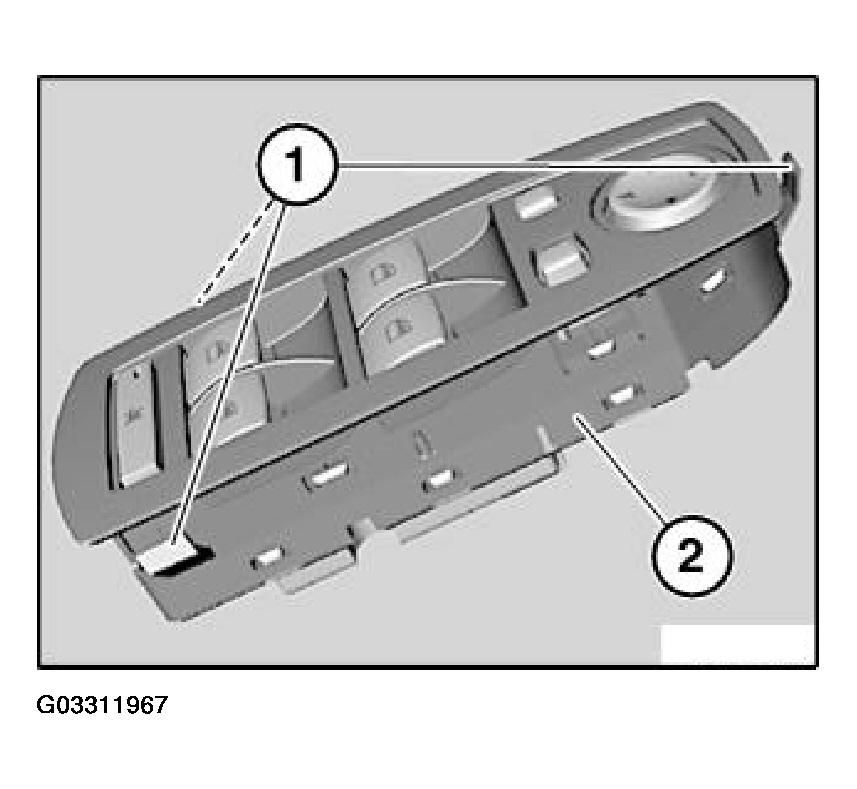

Fig 2: Locating Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure rocker switch for side window operation (2) is correctly seated.
