61 13... Crimping annular contacts

CrimpacII crimping pliers from repair kit 1 are used to crimp annular contacts.

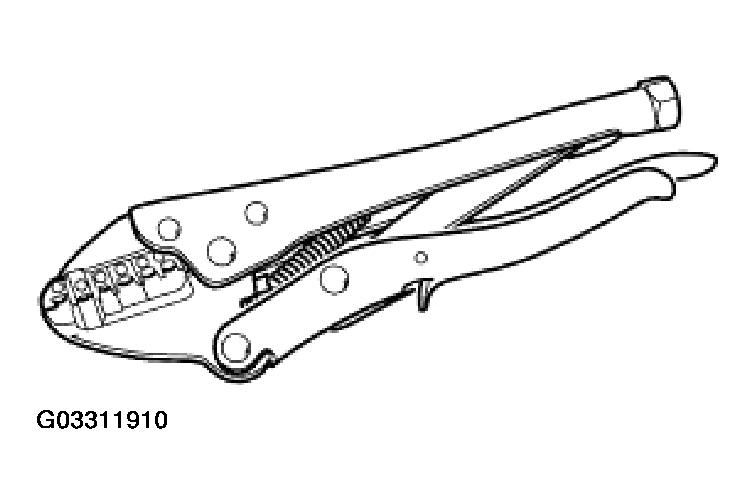

Fig 1: View Of Crimping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Open crimping pliers (1).

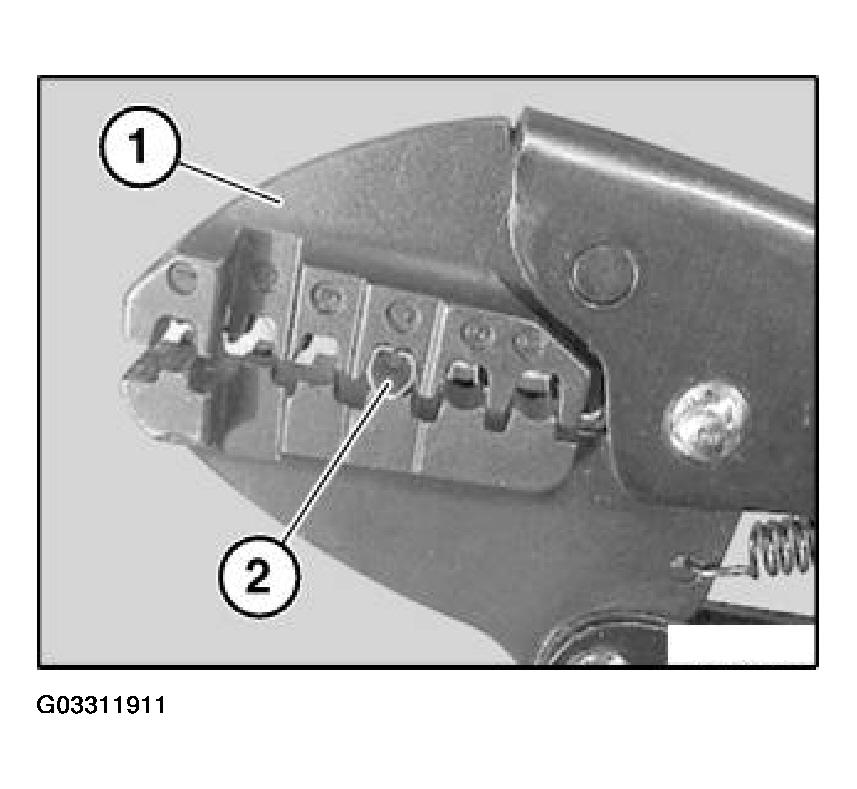

Fig 2: Placing Contact In Nest

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Place contact (2) in designated nest (observe wire cross-section) with particular care. Make sure it is exactly positioned.

Insert annular contact (2) in crimping pliers (1).

Close crimping pliers (1) gently and keep closed.

NOTE: Follow procedure for cutting and stripping insulation from cables.

Feed stripped cable (1) into annular contact (2) completely. Close crimping pliers (3) fully.

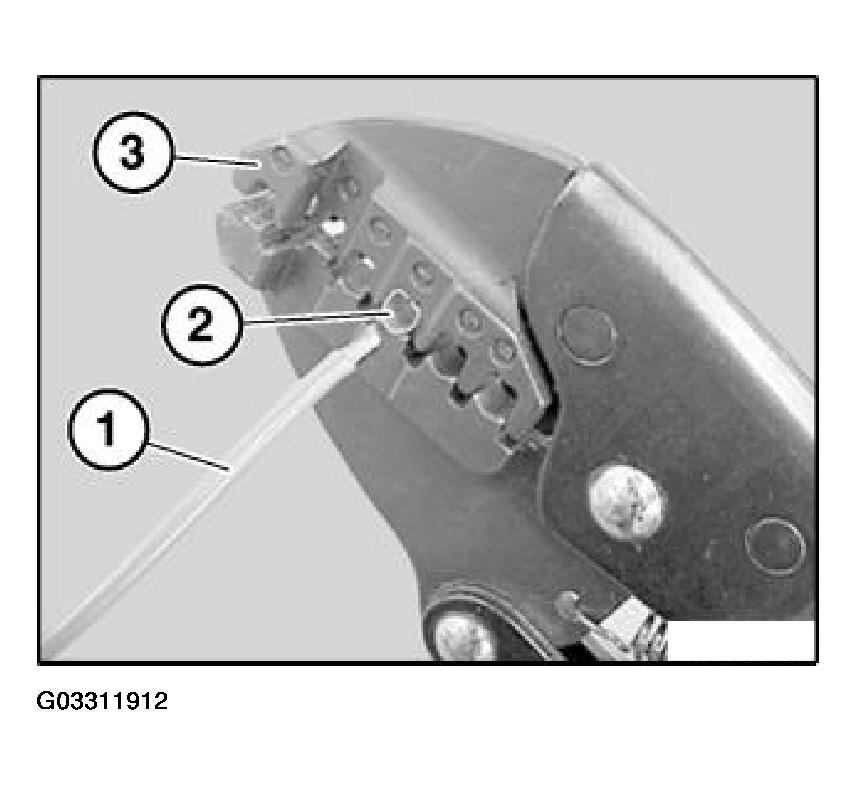

Fig 3: Crimping Annular Contacts

Courtesy of BMW OF NORTH AMERICA, INC.

Open crimping pliers (3) and remove cable (2).

NOTE: Check contact for correct crimping.
