61 13... Base of tab connector housings

Unlock hook (1) with special tool 61 1 360 and slide plug housing downwards out of base.

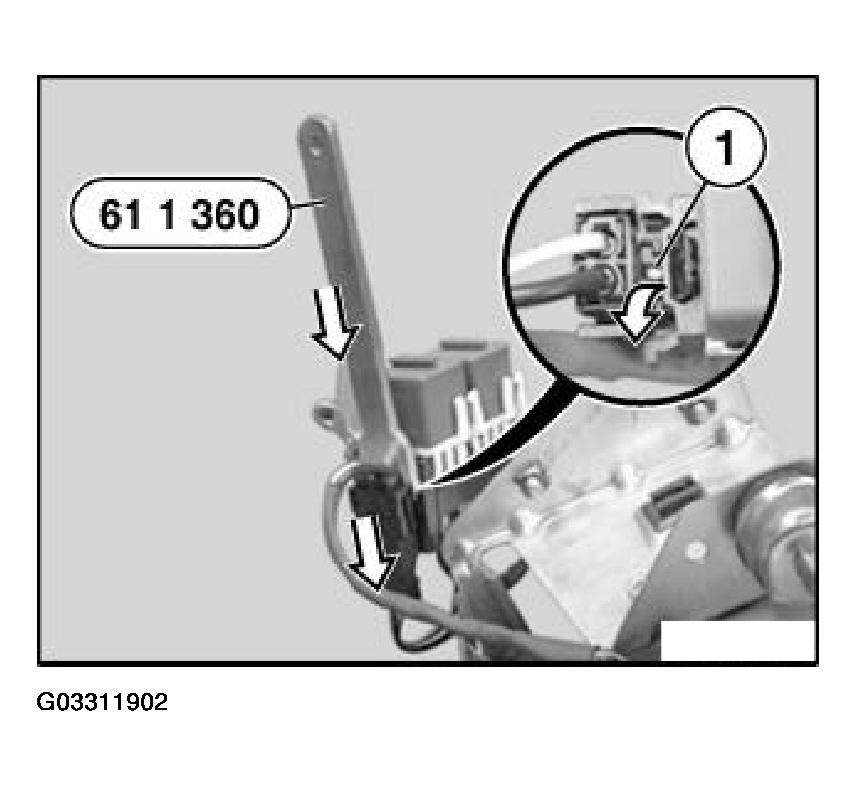

Fig 1: Unlocking Hook

G03311902

Courtesy of BMW OF NORTH AMERICA, INC.
