72 12... Overview of AIRBAG modules, seat belts and AIRBAG control units
72 12... Overview of AIRBAG modules, seat belts and AIRBAG control units

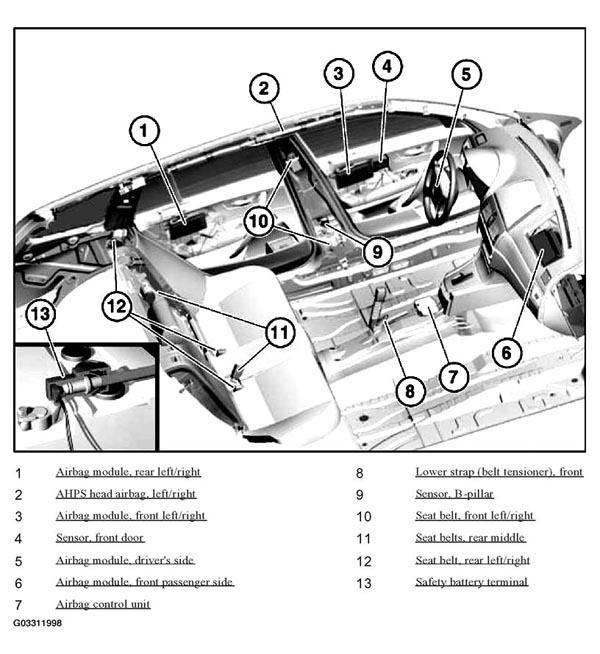

Fig 1: Overview Of AIRBAG Modules, Seat Belts And AIRBAG Control Units
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
