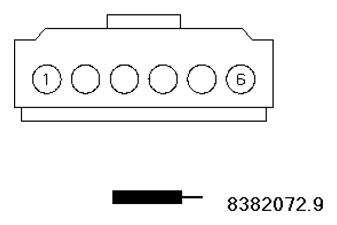

Safety And Gateway Module X13583 Connector End View
Pin Assignments at Plug Connector X13583
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A/E | Signal, byte-flight bus | Steering column switch cluster |
| 2 | A/E | Signal, byte-flight bus | Driver's door module |
| 3 | A/E | Signal, byte-flight bus | Passenger's door module |
| 4 | A/E | Signal, byte-flight bus | Satellite, left B-pillar |
| 5 | A/E | Signal, byte-flight bus | Satellite, right B-pillar |
| 6 | A/E | Signal, byte-flight bus | Satellite, vehicle center |
