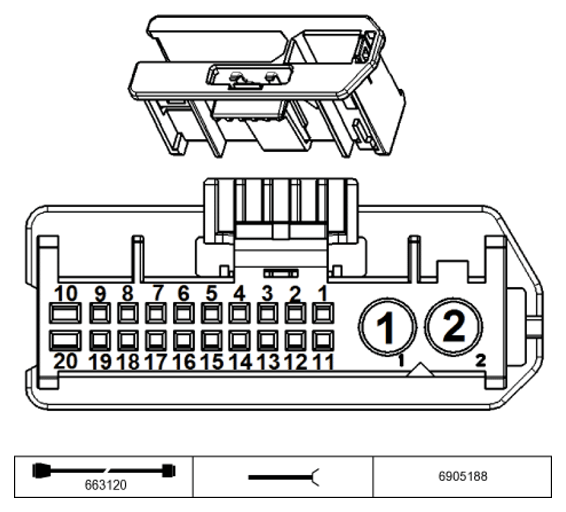

Navigation System X1312 Connector End View
Pin Assignments at Plug Connector X1312
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | -- | Not used | |
| 3 | E | Signal TX/RX | Electrochromic interior rear-view mirror |
| 4 | E | Signal TX/RX | Electrochromic interior rear-view mirror |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | E | RGB video signals | Video module CCC/M-ASK |
| 8 | E | RGB video signals | Video module CCC/M-ASK |
| 9 | -- | Not used | |
| 10 | E | Supply, terminal 30 | Fuse F35 |
| 11 | -- | Not used | |
| 12 | -- | Not used | |
| 13 | -- | Not used | |
| 14 | -- | Not used | |
| 15 | -- | Not used | |
| 16 | -- | Not used | |
| 17 | E | RGB video signals | Video module CCC/M-ASK |
| 18 | M | Shield | Video module CCC/M-ASK |
| 19 | E | Signal, rear left wheel speed | Connector X1101 (rear left wheel speed) |
| 20 | M | Ground | Ground point |
