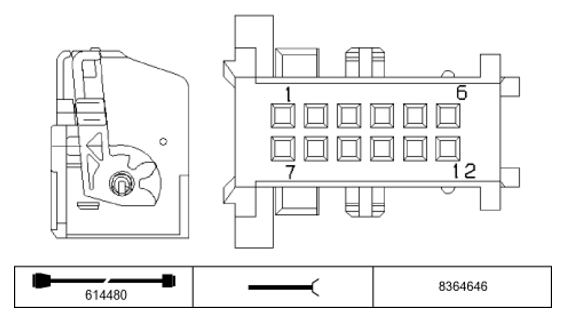

Driver's Seat Module X650 Connector End View
Pin Assignments at Plug Connector X650
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | Not occupied | ||
| 2 | E | Signal, Hall sensor | Drive, driver's seat backrest angle adjustment |
| 3 | E | Signal, Hall sensor | Drive, driver's seat height adjustment |
| 4 | E | Signal, Hall sensor | Drive, driver's seat angle adjustment |
| 5 | E | Signal, Hall sensor | Drive, driver's seat forward/backward adjustment |
| 6 | Not occupied | ||
| 7 | Not occupied | ||
| 8 | M | Ground, Hall sensor | Drive, driver's seat backrest angle adjustment |
| 9 | M | Ground, Hall sensor | Drive, driver's seat height adjustment |
| 10 | M | Ground, Hall sensor | Drive, driver's seat angle adjustment |
| 11 | M | Ground, Hall sensor | Drive, driver's seat forward/backward adjustment |
| 12 | Not occupied |
