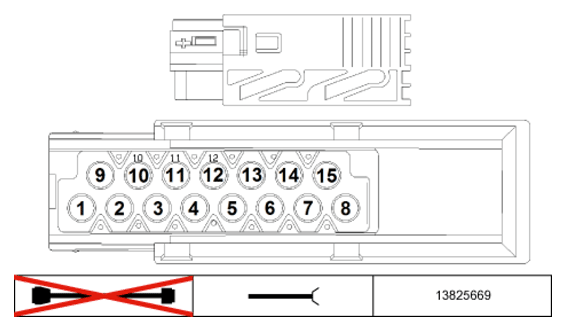

Driver's Seat Module X1465 Connector End View
Pin Assignments at Plug Connector X1465
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, motor, seat tilt adjustment | Drive, driver's seat angle adjustment |
| 2 | A | Signal, motor, seat tilt adjustment | Drive, driver's seat angle adjustment |
| 3 | A | Signal, motor, seat forward/backward adjustment | Drive, driver's seat forward/backward adjustment |
| 4 | A | Signal, motor, seat forward/backward adjustment | Drive, driver's seat forward/backward adjustment |
| 5 | A | Signal Drive, driver's seat height adjustment | Drive, driver's seat height adjustment |
| 6 | M | Ground Driver's seat module | Ground point |
| 7 | A | Signal Drive, driver's seat backrest angle adjustment | Drive, driver's seat backrest angle adjustment |
| 8 | E | Supply, terminal 30 | right-hand drive Fuse F21 |
| 8 | E | Supply, terminal 30 | left-hand drive Fuse F14 |
| 9 | A/E | K-bus signal | K-bus connector |
| 10 | A | Signal Drive, driver's seat height adjustment | Drive, driver's seat height adjustment |
| 11 | Not occupied | ||
| 12 | Not occupied | ||
| 13 | Not occupied | ||
| 14 | A | Signal Drive, driver's seat backrest angle adjustment | Drive, driver's seat backrest angle adjustment |
| 15 | Not occupied |
