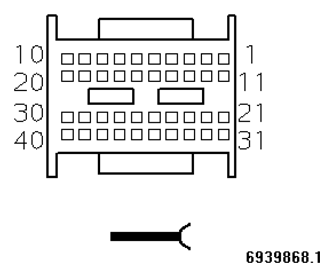

Crash Safety Module X18069 Connector End View
Pin Assignments at Plug Connector X18069
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | USA Signal, up-front sensor | Front airbag sensor, driver's side |
| 2 | E | Signal Airbag sensor, front driver's side door | Airbag sensor, front driver's side door |
| 3 | E | Signal Airbag sensor, B-pillar, driver's side | Airbag sensor, B-pillar, driver's side |
| 4 | E | Signal Airbag sensor, B-pillar, driver's side | Airbag sensor, B-pillar, driver's side |
| 5 | Not occupied | ||
| 6 | A/E | CAN bus low | CAN-bus connector |
| 7 | A | Signal Airbag indicator light | Airbag indicator light |
| 8 | M | Shielding | battery lead monitoring |
| 9 | Not occupied | ||
| 10 | M | Ground | Ground point |
| 11 | E | USA Signal, up-front sensor | Front airbag sensor, driver's side |
| 12 | E | Signal Airbag sensor, front driver's side door | Airbag sensor, front driver's side door |
| 13 | E | Signal Airbag sensor, B-pillar, driver's side | Airbag sensor, B-pillar, driver's side |
| 14 | E | Signal Airbag sensor, B-pillar, driver's side | Airbag sensor, B-pillar, driver's side |
| 15 | E | Signal, seat belt contact | Driver's seat belt buckle contact |
| 16 | A/E | CAN bus high | CAN-bus connector |
| 17 | A | Signal, automatic emergency call | TCU |
| 18 | M | Shielding | battery lead monitoring |
| 19 | Not occupied | ||
| 20 | E | Supply Terminal R | Car access system |
| 21 | A | Negative activation, airbag | Steering column switch cluster |
| 22 | A | Negative activation, airbag | Steering column switch cluster |
| 23 | A | Negative activation, airbag | Side airbag inflator assembly, driver |
| 24 | Not occupied | ||
| 25 | A | Negative activation, airbag | Inflator assembly, side airbag, rear driver's side |
| 26 | A | Negative activation, active head restraint | Generator for active head restraint, driver's seat |
| 27 | A | Negative activation, seat belt tensioner | Generator, driver's seat belt tensioner |
| 28 | A | Negative activation, seat belt tensioner | Generator, seat belt tensioner, rear passenger's side |
| 29 | A | Negative activation, airbag | Inflator assembly, driver's side head airbag |
| 30 | A | Negative activation, seat belt tensioner | Generator for end fitting pretensioner, driver's seat |
| 31 | A | Positive activation, airbag | Steering column switch cluster |
| 32 | A | Positive activation, airbag | Steering column switch cluster |
| 33 | A | Positive activation, airbag | Side airbag inflator assembly, driver |
| 34 | Not occupied | ||
| 35 | A | Positive activation, airbag | Inflator assembly, side airbag, rear driver's side |
| 36 | A | Positive activation, active head restraint | Generator for active head restraint, driver's seat |
| 37 | A | Positive activation, seat belt tensioner | Generator, driver's seat belt tensioner |
| 38 | A | Positive activation, seat belt tensioner | Generator, seat belt tensioner, rear passenger's side |
| 39 | A | Positive activation, airbag | Inflator assembly, driver's side head airbag |
| 40 | A | Positive activation, seat belt tensioner | Generator for end fitting pretensioner, driver's seat |
