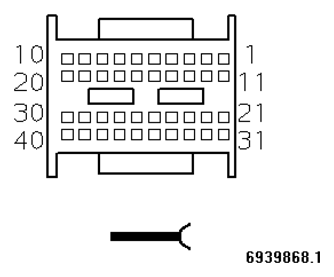

Crash Safety Module X10179 Connector End View
Pin Assignments at Plug Connector X10179
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | USA Signal, up-front sensor | Front airbag sensor, passenger's side |
| 2 | E | Signal Airbag sensor, front passenger's side door | Airbag sensor, front passenger's side door |
| 3 | E | Signal Airbag sensor, B-pillar, passenger's side | Airbag sensor, B-pillar, passenger's side |
| 4 | E | Signal Airbag sensor, B-pillar, passenger's side | Airbag sensor, B-pillar, passenger's side |
| 5 | Not occupied | ||
| 6 | Not occupied | ||
| 7 | E | Signal, airbag deactivation - | Switch, passenger airbag deactivation |
| 8 | Not occupied | ||
| 9 | Not occupied | ||
| 10 | Not occupied | ||
| 11 | E | USA Signal, up-front sensor | Front airbag sensor, passenger's side |
| 12 | E | Signal Airbag sensor, front passenger's side door | Airbag sensor, front passenger's side door |
| 13 | E | Signal Airbag sensor, B-pillar, passenger's side | Airbag sensor, B-pillar, passenger's side |
| 14 | E | Signal Airbag sensor, B-pillar, passenger's side | Airbag sensor, B-pillar, passenger's side |
| 15 | E | Signal Passenger's seat belt buckle contact | Passenger's seat belt buckle contact |
| 16 | Not occupied | ||
| 17 | E | Signal, airbag deactivation + | Switch, passenger airbag deactivation |
| 18 | Not occupied | ||
| 19 | Not occupied | ||
| 20 | Not occupied | ||
| 21 | A | Negative control, generator for safety battery terminal | Generator, safety battery terminal |
| 22 | A | Negative activation, airbag | Inflator assembly, passenger's side head airbag |
| 23 | A | Positive activation, seat belt tensioner | Generator, seat belt tensioner, rear driver's side |
| 24 | A | Negative activation, seat belt tensioner | Generator, passenger's seat belt tensioner |
| 25 | A | Negative activation, active head restraint | Generator for active head restraint, passenger's seat |
| 26 | A | Negative activation, airbag | Inflator assembly, side airbag, rear passenger's side |
| 27 | Not occupied | ||
| 28 | A | Negative activation, airbag | Side airbag inflator assembly, passenger |
| 29 | A | Negative activation, airbag | Inflator assemblies, passenger's airbag |
| 30 | A | Negative activation, airbag | Inflator assemblies, passenger's airbag |
| 31 | A | Positive control, generator for safety battery terminal | Generator, safety battery terminal |
| 32 | A | Positive activation, airbag | Inflator assembly, passenger's side head airbag |
| 33 | A | Negative activation, seat belt tensioner | Generator, seat belt tensioner, rear driver's side |
| 34 | A | Positive activation, seat belt tensioner | Generator, passenger's seat belt tensioner |
| 35 | A | Positive activation, active head restraint | Generator for active head restraint, passenger's seat |
| 36 | A | Positive activation, airbag | Inflator assembly, side airbag, rear passenger's side |
| 37 | Not occupied | ||
| 38 | A | Positive activation, airbag | Side airbag inflator assembly, passenger |
| 39 | A | Positive activation, airbag | Inflator assemblies, passenger's airbag |
| 40 | A | Positive activation, airbag | Inflator assemblies, passenger's airbag |
