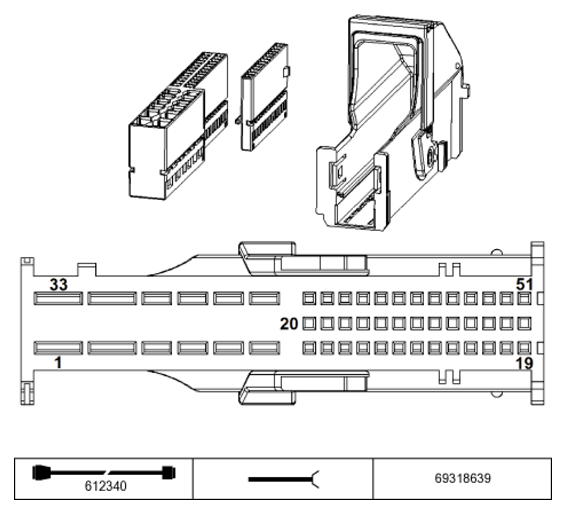

Body-Gateway Module X16759 Connector End View
Pin Assignments at Plug Connector X16759
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, load cutout | Fuse holder, front |
| 2 | E | Supply, terminal 30 | Fuse F18 |
| 3 | -- | Not occupied | |
| 4 | -- | Not occupied | |
| 5 | -- | Not occupied | |
| 6 | -- | Not occupied | |
| 7 | -- | Not occupied | |
| 8 | -- | Not occupied | |
| 9 | -- | Not occupied | |
| 10 | A | Signal, exit light | Exit light, driver's door |
| 11 | A | without active steering Signal, Servotronic solenoid valve | Servotronic valve |
| 12 | A | without active steering Signal, Servotronic solenoid valve | Servotronic valve |
| 13 | -- | Not occupied | |
| 14 | A | Supply, Hall sensor | Driver's window motor |
| 15 | E | Signal, Hall sensor | System lock, driver's door |
| 16 | -- | Not occupied | |
| 17 | -- | Signal, Hall sensor | Driver's window motor |
| 18 | -- | Diagnosis signal TXD | Connector X183 |
| 19 | A | Unlock motor signal | System lock, driver's door |
| 20 | -- | Not occupied | |
| 21 | -- | outside mirror Low Ground | Outside mirror, driver's side |
| 22 | E/A | Touring Signal, LIN bus | Roller cover controller |
| 23 | E/A | Signal, LIN bus | Connector, LIN bus |
| 24 | -- | Not occupied | |
| 25 | -- | Not occupied | |
| 26 | -- | Not occupied | |
| 27 | -- | Not occupied | |
| 28 | E | Signal, Hall sensor | System lock, driver's door |
| 29 | E | Door contact signal | System lock, driver's door |
| 30 | M | Sensor ground | Driver's window motor |
| 31 | -- | Not occupied | |
| 32 | A | Signal, lock motor | System lock, driver's door |
| 33 | E | Supply, terminal 30 | Fuse F10 |
| 34 | M | Ground | Ground point |
| 35 | A | Activation Driver's window motor | Driver's window motor |
| 36 | A | Activation Driver's window motor | Driver's window motor |
| 37 | -- | Not occupied | |
| 38 | -- | Not occupied | |
| 39 | -- | Not occupied | |
| 40 | A | outside mirror Low Voltage supply, horizontal mirror adjustment | Outside mirror, driver's side |
| 41 | A | outside mirror Low Voltage supply, vertical mirror adjustment | Outside mirror, driver's side |
| 42 | A | outside mirror Low Voltage supply, outside mirror heating | Outside mirror, driver's side |
| 43 | -- | Not occupied | |
| 44 | -- | Not occupied | |
| 45 | -- | Not occupied | |
| 46 | -- | Not occupied | |
| 47 | -- | Not occupied | |
| 48 | A | Sensor ground | System lock, driver's door |
