Repair and Diagnosis
>>
Brakes
>>
Abs/Traction Control - Service Information
>>
Dynamic Stability Control DSC 8
>>
Introduction
>>
E60, E61, E63, E64: System Overview For DSC 8 Dynamic Stability Control
>>
Hydraulics Diagram
Hydraulics Diagram

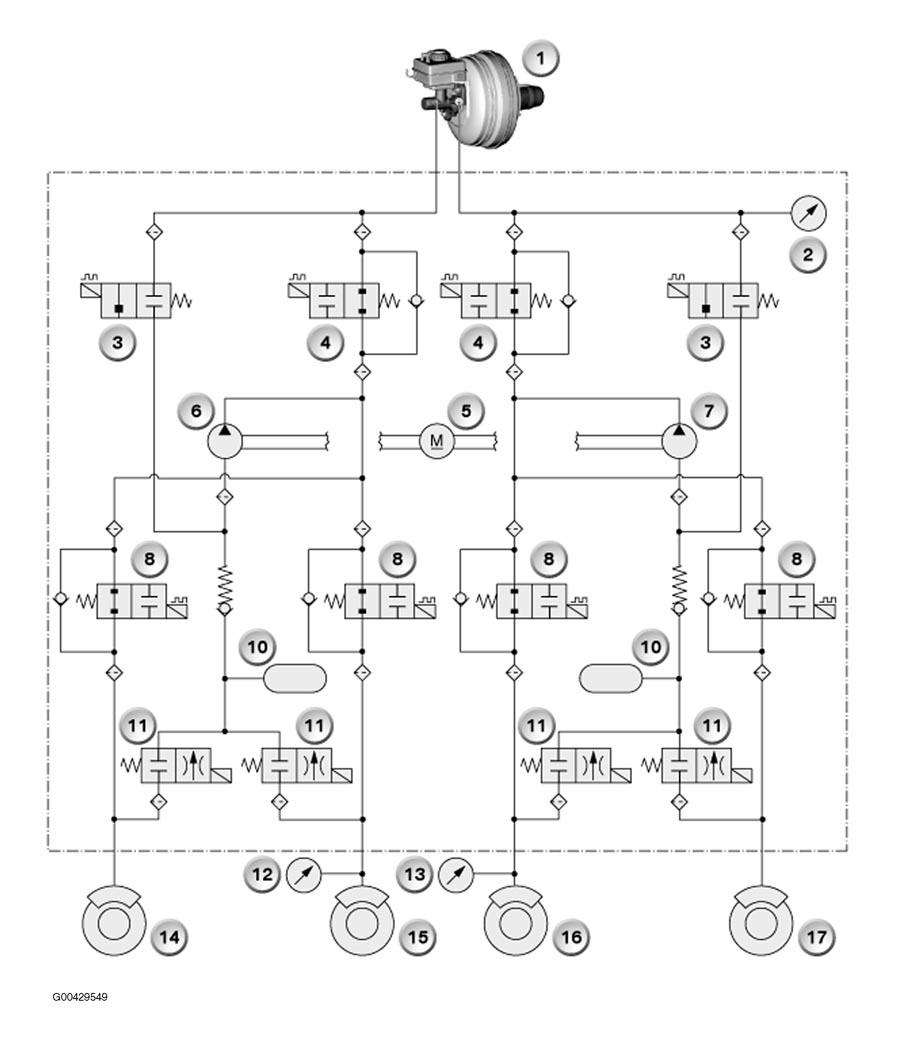

Fig 1: DSC Hydraulic System Diagram
Courtesy of BMW OF NORTH AMERICA, INC.

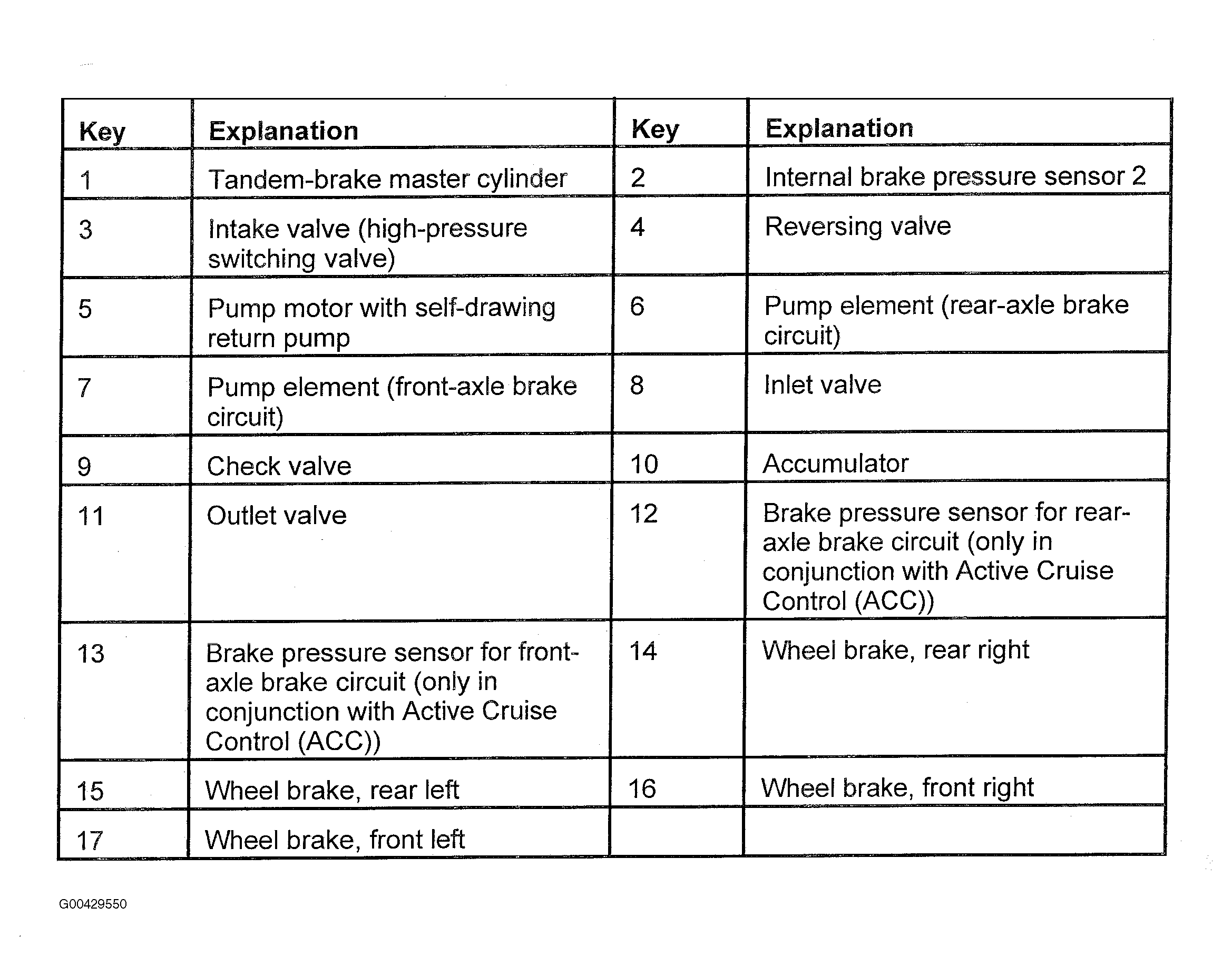

Fig 2: DSC Hydraulic System Diagram Legend
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
