Working On Electronic Components: Replacement

The electronic components must be replaced as described in the repair instructions and following the procedure described on SIP Electrostatic Fundamentals, while observing ESD safety measures.

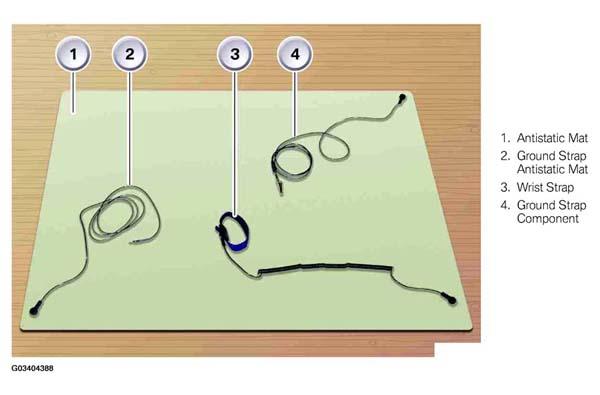

Fig 1: Identifying Safety Components While Testing

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Remember the following when using the Antistatic Mat:

Ground the Antistatic Mat to the workbench using the attached lead
Attach the Grounding strap to the component being serviced
Always wear the wrist cuff.

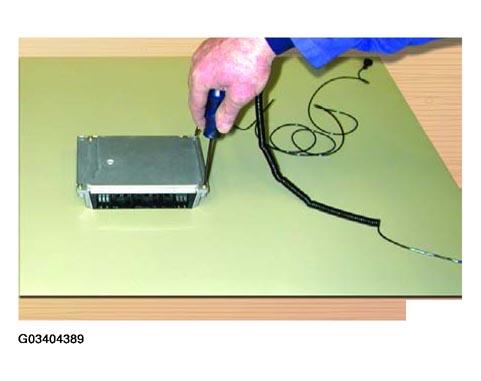

Fig 2: Attaching Grounding Strap To Component Being Service

Courtesy of BMW OF NORTH AMERICA, INC.
