Description & Operation: Components

The car communication computer consists of several components:

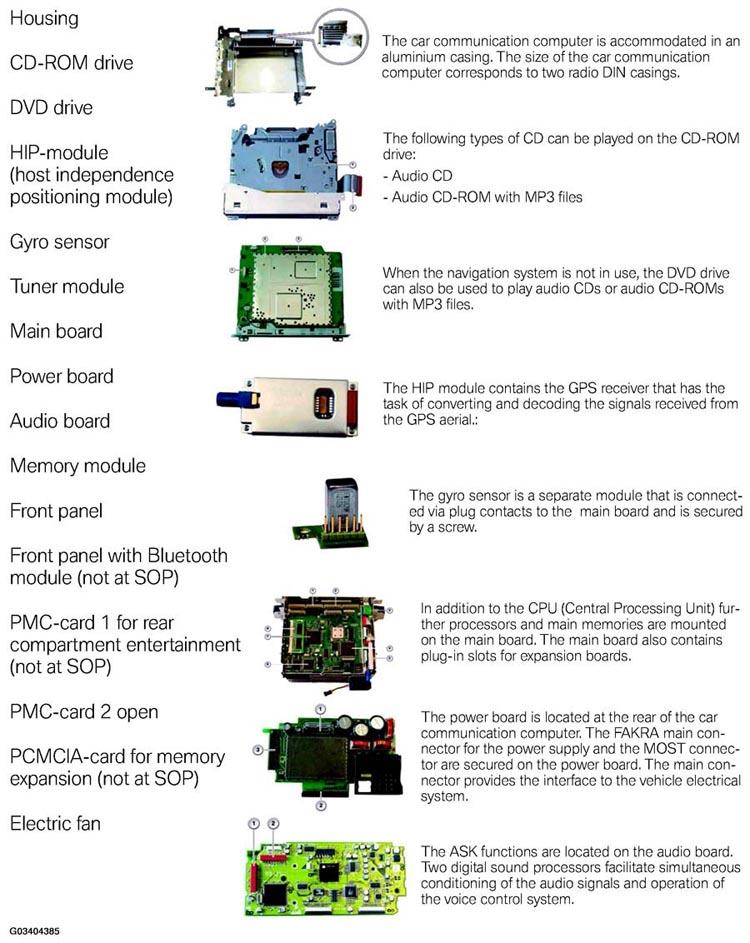

Fig 1: Identifying Car Communication Computer Components

Courtesy of BMW OF NORTH AMERICA, INC.

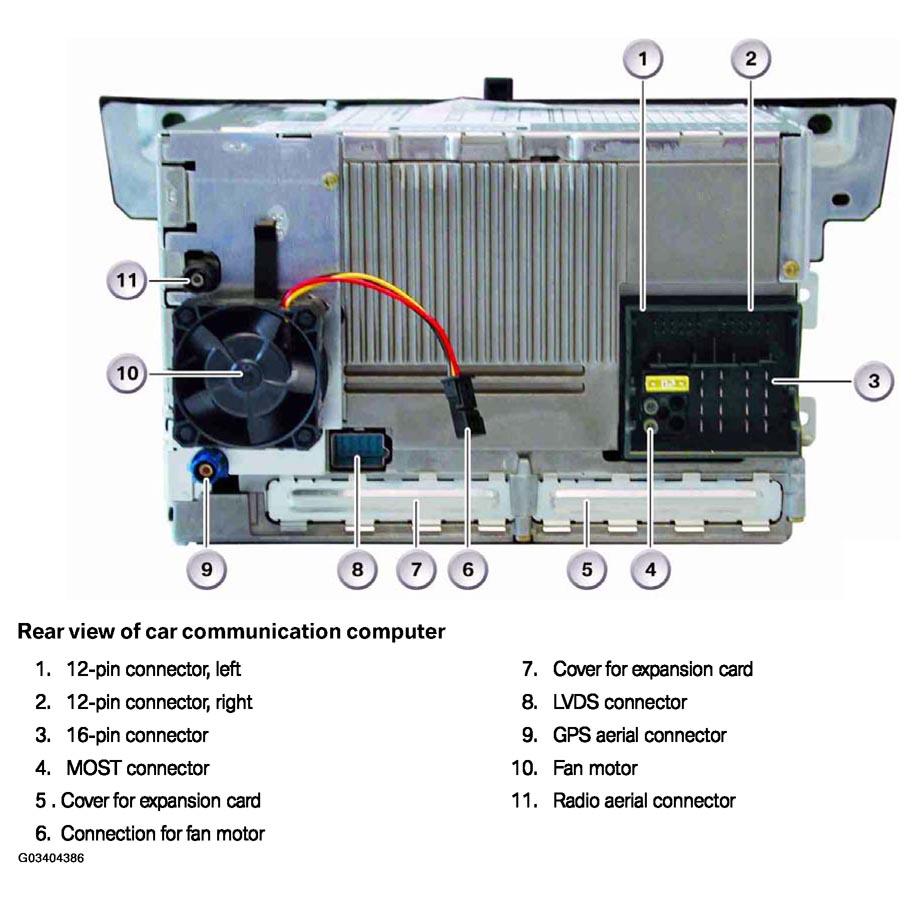

Fig 2: Rear View Of Car Communication Computer (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Rear View Of Car Communication Computer (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
