00 11.. ... Draining/Topping Up Gear Oil In Manual Transmission
NOTE:
Gearbox must be at normal operating temperature. Gear oil:
Filling capacities:
- Refer to BMW SERVICE OPERATING FLUIDS .
Filling capacities:
- Refer to FLUID CAPACITIES .
Draining gear oil:

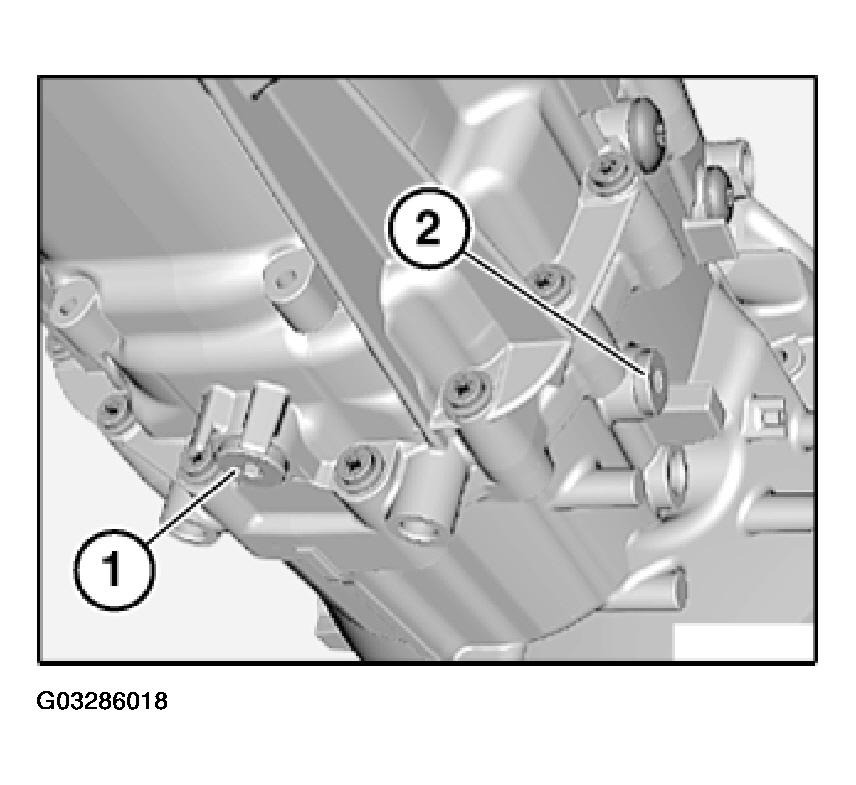

- Release oil drain plug (1) and filler plug (2).
- Clean oil drain plug (1) and screw in.
Tightening torque, refer to TORQUE SPECIFICATIONS .
Fill transmission with gear oil.
- Pour in gear oil until overflowing.
- Tighten in filler screw (2).
Tightening torque, refer to TORQUE SPECIFICATIONS .
