Dynamic Stability Control DSC 8
>>
Introduction
>>
E60, E61, E63, E64: System Overview For DSC 8 Dynamic Stability Control
>>
System Circuit Diagram
System Circuit Diagram

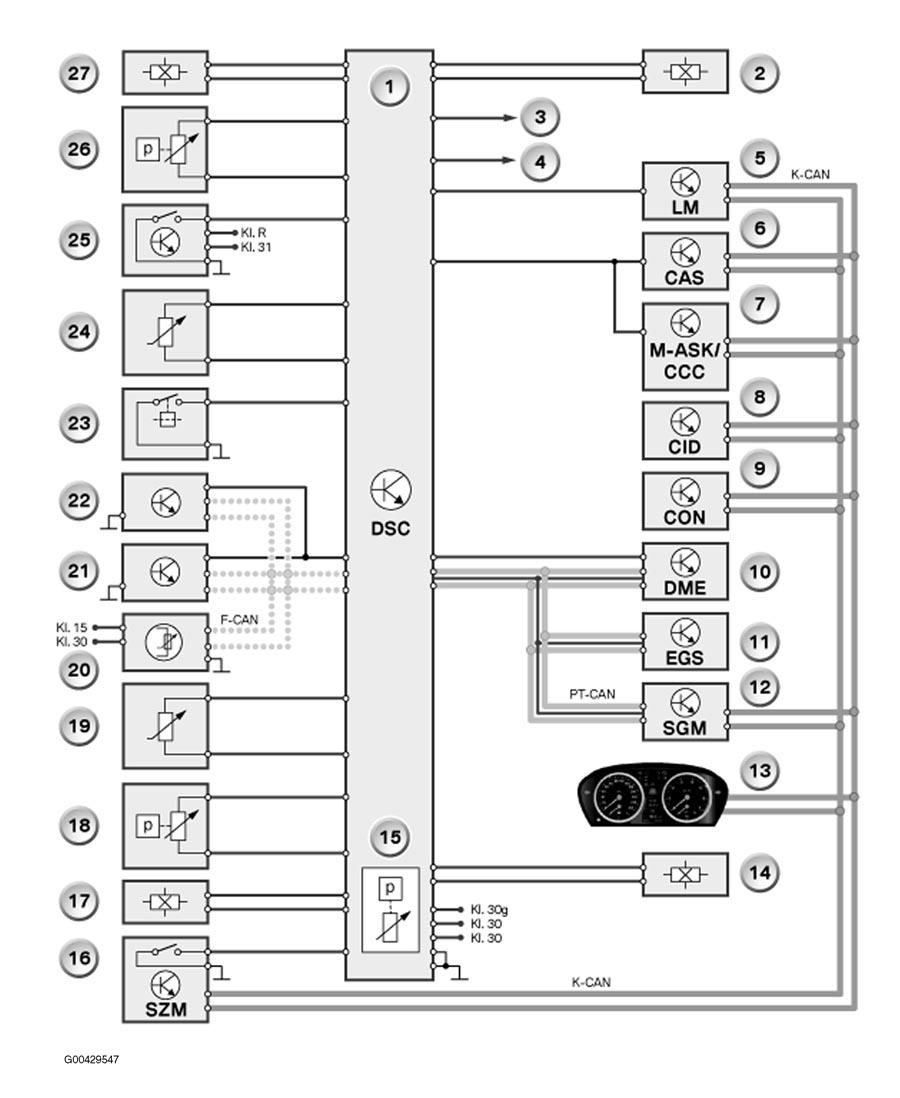

Fig 1: DSC System Circuit Diagram
Courtesy of BMW OF NORTH AMERICA, INC.

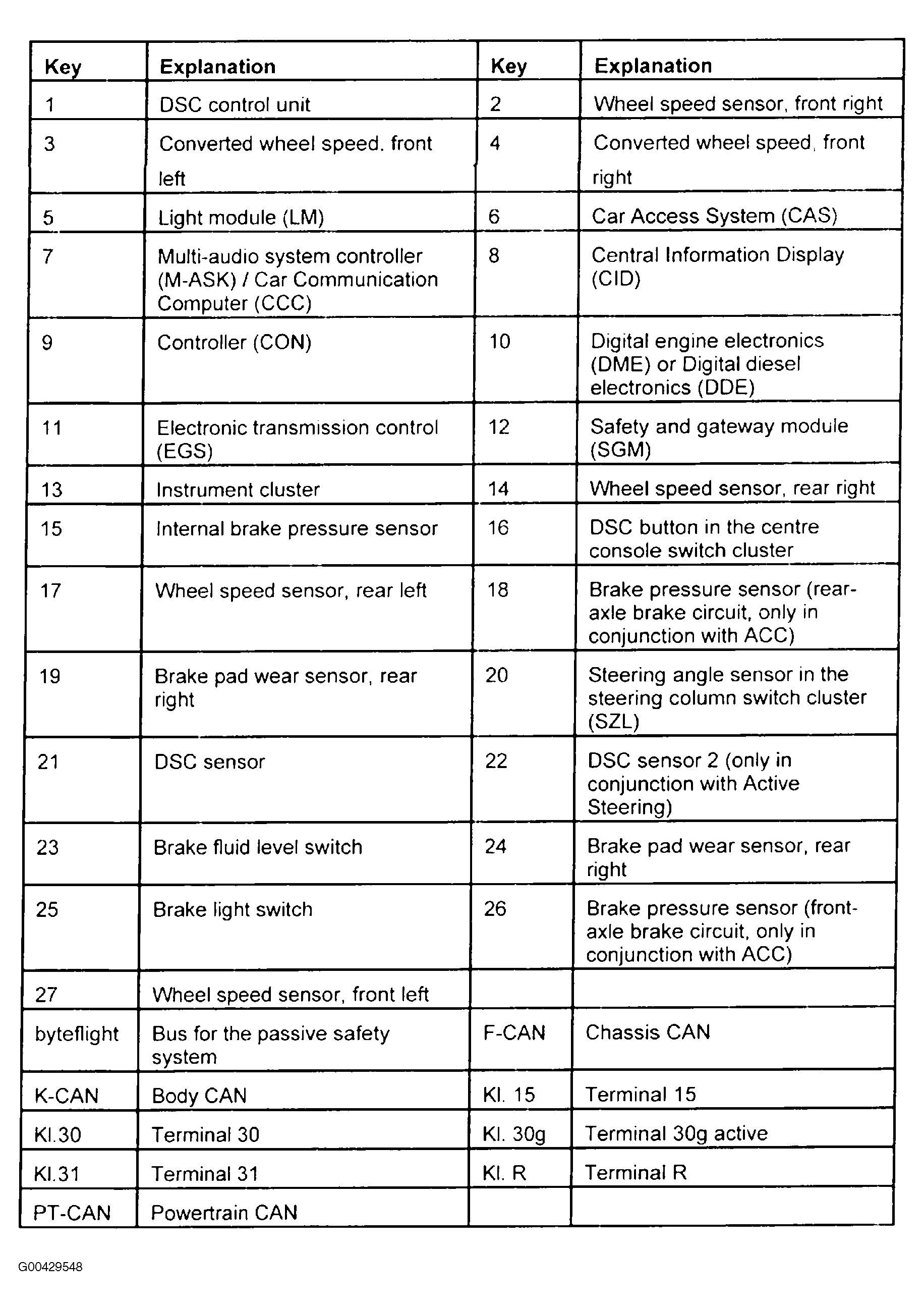

Fig 2: DSC System Circuit Diagram Legend
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
